Introduction

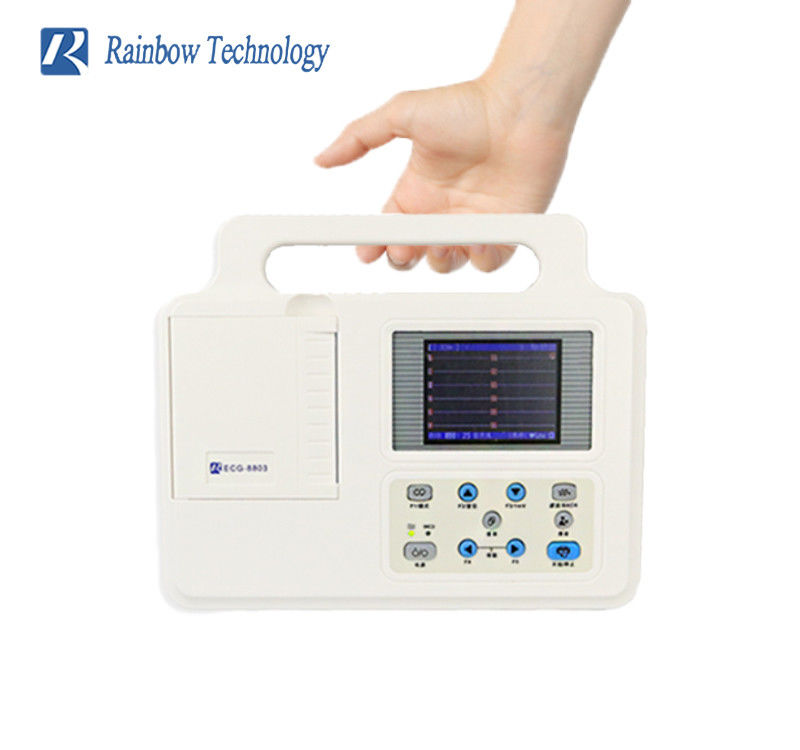

ECG-8801 8803 single channel electrocardiograph can print ECG waveform with thermal printing system, prompt for “Lead off” and “Lack of paper”, record ECG waveform with manual or auto-mode, which is very convenient for operation.

Features

1. 3.5'' widescreen display, Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
2.   Display of 12lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
3.   With the functions of auto-analysis and auto-diagnosis for routine ECG parameters,which reduces the doctor’s burden.
4.   All-in-one installation free, preferred for the transfer of first aid.
5.   The machine is smart, thin, delicate and easy to carry. Built-in lithium battery lasts eight hours

Performance
1) Input mode: Floating and defibrillation protection
2) Frequency response: 0.05Hz~160Hz (-3dB)
3) CMRR: >60dB, >100dB (Filter ON)
4) Time constant: ≥3.2s
5) Patient leak current: <10µA
6) Calibration voltage: 1mV
7) Sensitivity choice:2.5/ 5/10/20/40mm/mV, error: ±5%. Standard sensitivity: 10mm/mV, error: ±2%
8) Noise level: ≤15µVp-p
9) Input loop current: ≤50nA
10) Input impedance: ≥50MΩ
11) Sampling accuracy: 12bit
12) Security type: CF type of classⅠ, anti-defibrillation applied part
13) Recording way: Thermal printing system
14) Specification of recording paper:50mm(W) × 20mm(L) High-speed thermal paper
15) Sampling rate: 800Hz
16) Power frequency filtration: AC 50Hz/60Hz
17) Paper speed: 25/50mm/s, error: ±5%

18) Communication port: Standard USB/RS232


 Accessories
Standard configuration:
A lead cable
A limb electrode
A chest electrode
A thermal recording paper
A power cord
An earth wire
A user manual
