Product Details:
|
Product Name: | Electrocardiogram Machine | Power Source: | Electricity/ Built-in Battery |
---|---|---|---|
Channel: | 3 Channels | Lead: | Standard 12 Leads |
Resolution: | 800×480 | Rated Capacity: | 2200mAh |
Highlight: | 7In Color Screen Medical Ecg Machine,Digital 3 Channels Medical Ecg Machine,800×480 Electrocardiogram Machine |

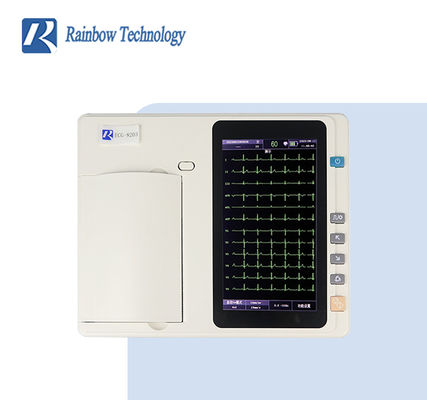

Digital 3 Channels 7 inch Color Screen Medical Ecg Machine Electrocardiogram
Features:
* 7 inch high resolution color touch screen
* 12-lead simultaneous acquisition and display
* ECG Automatic measurement and interpretation function
* Complete digital filters, resisting baseline drift, AC and EMG interference
* Compact and lightweight design
* Support USB flash disk and micro SD card to extend memory
* Software upgrade via USB/SD card
* Built-in rechargeable Li-ion battery
Power Supply |
AC | Rated voltage=90V-240V |
Rated frequency=50Hz/60Hz | ||
Rated power=35VA | ||
DC
(Built-in rechargeable li-ion battery) |
Rated capacity=2200mAh | |
Rated voltage=10.8V | ||
Discharge End Voltage ≥9V | ||
Recharge mode:CC/CV | ||
Recharging current(standard)=0.2C5A (440mA) | ||
Recharging voltage(standard)=(13±0.1V) | ||
Maximum continuous charge current=2200mA | ||
Max. Continuous Discharge Current=2200mA | ||
Cycle life≥300 times | ||
Power dissipation | 35VA(Max.) | |
Fuse specification | T200mA 250V Ø5×20 |
Optional two kinds of version shape
Packing list:
Name | QTY | Name | QTY |
ECG machine | 1 | Fuse | 2 |
ECG cable | 1 | Operation manual | 1 |
Limb electrodes | 4 | ||
Chest electrodes | 6 | ||
Grounding wire | 1 | ||
Print paper | 1 roll | ||
Power line | 1 |
ECG Mainframe |
Input mode | Floating, defibrillation protection,pacemaker pulse rejection |
Lead | 12 standard leads,Auto-switching leads | |
Operation mode | Simultaneously 12 channel | |
A/D switching | 12 / 16/ 24 | |
Measurement range | > ±5mV | |
Time constant | ≥ 3.2s | |
Frequent response | 0.05Hz ~ 150Hz | |
Sensitivity | 2.5,5,10,20 (mm/mV) | |
Input impedance | 50M![]() |
|
Input circuit current | ≤ 50nA | |
Input voltage tolerance | < ±5 mVpp | |
Calibrating voltage | 1mV±3% | |
Noise level | < 15![]() |
|
Inter-Channel Interference | ≤ 0.5mm | |
Patient current leakage | < 10![]() |
|
Patient auxiliary current leakage | < 0.1![]() |
|
Insulation strength | 4000V rms | |
Filter | AC filter ON/OFF | |
Baseline drift filter 0.05/0.15/0.25/0.5/ADP | ||
EMG filter 25Hz,35Hz,OFF | ||
Low-pass filters 150Hz/100Hz/75Hz | ||
CMRR | >100dB |
