|Size:||10.1-inch Colorful LCD Display||Mainframe Size:||330(length)×332(width)×87(height)mm|
|Net Weight:||4.10kg||Printing System:||Built-in Thermal Printer|
|Fuse Specification:||T3.15A 250V Ø5×20mm||Input Circuit:||Floating, Defibrillation Protection|

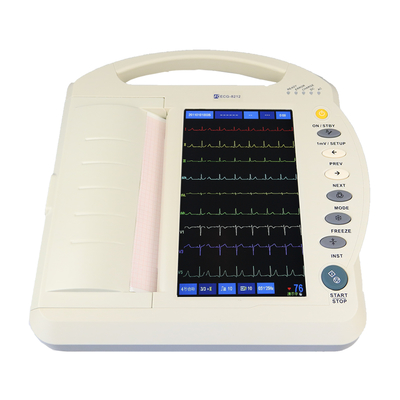

Colorful LCD Medical ECG Machine,
10.1 Inch Medical ECG Machine,
12 Lead ECG Machine
Product name:digital 12 channel ECG machine
Product code: ECG-8812
Function features of ECG machine
1,Simultaneously acquisition of 12 lead,
2,10.1-inch colorful LCD display,touch screen,full screen display of 12 channel ECG waveforms.
3,Possible to input hospital, name, gender, age and other information through built-in software touchable keyboard.
4,High-performance processors and thermal plotting integration printer with the function of adjusting printing speed and heat to ensure printing performance in 210mm,215mm and 216mm recording paper.
5,Real-time ECG waveform frozen function to grab crucial ECG waveforms of patients.
6,Input signal grounding function for situation of low signal or over-load signal caused by patient movements. Screen displays straight lines and signal will recover after a few seconds.
7,Precise ECG auto-diagnostic function with common arrhythmia examples for reference.
8,Electrocardiogram automatic precise measurement with heart rate limit alarm, diagnostic and analysis. Self-Determined whether to print analysis report
9,Enable to choose and set whether to print characteristic waveforms.
10,WiFi network interface for PC wireless communication. Possible to visit via PC, download and print ECG data. (Extended function)
11,Hugh-capacity storage(more than 200 cases),with case data storage,playback and print. Enable to delete and empty current case in the storage.
12,12 channel/ 6 channel/(6+rhythm)channel/(3+rhythm+V1+V5)channel/9 channel/single channel, five ECG display combined modes.
13,(3+rhythm+V1+V5)channel/6 channel/(6+rhythm)channel/12 channel/ (12+rhythm) channel/9 channel/ (9+thythm) channel /single channel, eight ECG record combined modes.
14,Automatic, pre-sampling, manual, single lead one minute (60s), rhythm analysis (single lead sampling takes 300 seconds, print histogram and trend graph) and multiple operation modes.
15,Built-in rechargeable li-ion battery(14.8V 4400mAh)；
16,Screen protection function(AC mode,5 minute without any operations)and long-time auto power off function(DC,5 minute without any operations)；
17,Lead-fall, low paper detection and indication function.
18,Beautiful in design with portable handle to carry conveniently.
19,Wide-range power supply,suitable for 100V～230V±10%,45Hz～60Hz±2% AC.
|CMRR||＞100dB with filter, ＞89dB without filter|
Floating, defibrillation protection
Input circuit current
Patient Current Leakage
|Filter||AC filter (50Hz or 60Hz, -20dB)|
|EMG filter (25Hz/35Hz/45Hz/75Hz/100Hz,-3.0dB)|
|Drift filter (0.5Hz,-3.0dB)|
0.05～150Hz(-3.0dB - +0.4dB)under 10Hz
automatic,manual,single channel 60s compressed record, Rhythm analysis (R-R histogram and trend chart)
|Built-in thermal printer|
|T3.15A 250V Ø5×20mm|
14.8V 4400mAh rechargeable Li-ion battery pack (DC)
100V～230V±10%, 45Hz～60Hz±2%, 100VA (AC)
|216/210/215mm(width)×20M(length) thermal paper in rolls (paper core diameter≥12mm)|
|Mainframe size||330(length)×332(width)×87(height)mm||Net weight||4.10kg|
|Gross weight||6.70kg(1 unit/box with accessories), 14.55kg (2 unit /box with accessories)|
|Package size||43×40×22.5cm(1 unit/box), 45×41.5×48cm( 2 unit /box)|
|ECG cable||1||Operation manual||1|
|Print paper||1 roll|
