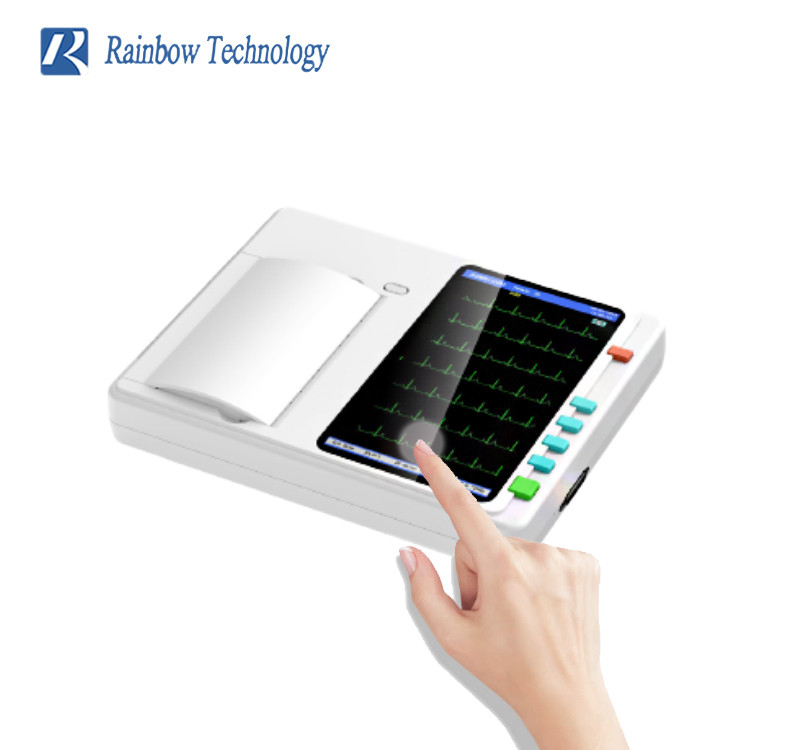

ECG-8203 Hot Sale Medical Electrocardiogram 12 Lead 3 6 Channel Digital Portable ECG Cardiograph Machine
Product Discription
Main Feature
☑Touch Screen and push button
☑7 Inches color LCD display
☑More than 30000 patients save
☑ Support SD card, USB disk
☑ECG automatic measurement and interpretation function
☑Compact and lightweight design
☑Complete digital filters, resisting baseline drift, AC and EMG interference
|
Items
|
specification
|
|
Features
|
7 "display,
touch screen
Support Ecg analysis capabilities
|
|
Lead
|
standard 12 leads
|
|
lead acquisition
|
synchronously 12 leads
|
|
Input circuit
|
Floating; Protection circuit against Defibrillator effect
|
|
Input Impedance
|
≥50MΩ
|
|
Input circuit current
|
≤0.0.05μA
|
|
Record mode
|
Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2;
Manual: 3CH, 2CH, 3CH+1R, 2CH+1R;
Rhythm: Any lead selectable.
|
|
Filter
|
EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz
DFT Filter: 0.05 Hz/ 0.15 Hz
AC Filter: 50 Hz / 60Hz
|
|
CMRR
|
>100dB
|
|
Patient current leakage
|
<10μA
|
|
Input Circuit Current
|
<0.05µA
|
|
Frequency Response
|
0.05Hz~150Hz (-3dB)
|
|
Sensitivity
|
2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
|
|
Anti-baseline Drift
|
Automatic
|
|
Time constant
|
≥3.2s
|
|
Noise level
|
<15μVp-p
|
|
Paper speed
|
10 mm/s, 25 mm/s, 50 mm/s
|
|
Recording mode
|
Thermal printing system
|
|
Paper specification
|
80mmx20m paper roll
112mmx20m paper roll
|
|
LCD display
|
7" graphic LCD
|
|
Safety classification
|
IEC60601-1 class I, type CF
|
|
Power supply
|
AC: 90~240V, 50/60Hz, 35VA
|
|
Fuse
|
T200mA250V∅5×20
|
| Size |
255mm*205mm*65mm |
Standard Configuration:
Main machine: 1 PC
Patient cable: 1 PC
Limb electrode: 1set (4pcs)
Chest electrode: 1set( 6pcs)
Power cable: 1 PC
recording paper: 80mm/112mm*20M 1 PC
Paper axis: 1 PC
operation manual: 1 PC
Three Certificates:1 PC
FAQ
Q1 :Are you a manufacturer or trading company?
A:We are the top manufaturer of ICU equipment in China since 1997.
Q2:Do you need foreign agent?
A:Surely Yes, we warmly welcome foreign clients to be our agent.
Q3:How can we guarantee quality?
A:Each production step has two times inspection, engineers simulating actual operation of each machine before shipping.
Q4:Why should we buy from you rather than from other suppliers?
A:Producing stable quality and affordable products is our purpose!We have been producing medical devices for more than 20 years, we have rich experience in production and maintenance.
Q5:What's your lead time?
A:2-3 days for sample orders,7-20 days for mass production.
