Medical Printer Touch Screen ECG Machine 12 Channel

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

Medical Printer Touch Screen ECG Machine 12 Channel

Medical Printer Touch Screen ECG Machine 12 Channel
Medical Printer Touch Screen ECG Machine 12 Channel
Medical Printer Touch Screen ECG Machine 12 Channel Medical Printer Touch Screen ECG Machine 12 Channel Medical Printer Touch Screen ECG Machine 12 Channel Medical Printer Touch Screen ECG Machine 12 Channel Medical Printer Touch Screen ECG Machine 12 Channel

Large Image :  Medical Printer Touch Screen ECG Machine 12 Channel

Product Details:
Place of Origin: Hunan, China
Brand Name: RAINBOW
Certification: ISO13485, FSC
Model Number: ECG-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US $380-$468/unit
Packaging Details: Anti-collision film+ Carton box Carton box dimension: 43*20*42cm Gross weight: 5.6kg
Delivery Time: Within 3 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000units/year

Medical Printer Touch Screen ECG Machine 12 Channel

Description
Patient Leak Current: <10μA Operation: Full Keyboard And Touch Screen
Usage: Professional Testing Input Dynamic Range: ±10mVp-p
Color: White Weight: 2600g (excluding Printing Paper)
High Light:

Printer Touch Screen ECG Machine

,

12 Channel Touch Screen ECG Machine

,

Class 2 Medical ECG Machine

China Supplier Medical 12 Channel Printer Touch Screen ECG Machine





Features:



1. 12 channel ECG machine with interpretation

2. Simultaneous 12 leads acquisition and (Manual/Auto) recording with high resolution thermal printer

3. Manual/Auto working modes

4. Use digital isolation technology and digital signal processing

5. Baseline stabilization inspection

6. Full keyboard and touch screen operation

7. Support SD card storage

8. Support Chinese and English



Specification
item
value
Place of Origin
China
Brand Name
Rainbow
Model Number
ECG-8212
Power Source
Electricity and li-ion battery
Warranty
1 Year
Material
Metal, Plastic
Shelf Life
2 years
Quality Certification
ISO 13485, FSC
Instrument classification
Class II
Leads:
12 leads
Input circuit:
Floating,Defibrillation protection
Patient Current Leakage:
<10uA
Input circuit current:
≤0.1μA
CMRR:
>100dB with filter, >89dB without filter
Noise Level:
≤15μVp-p
Calibration Voltage:
1mV±2%
Printing Output:
3 channel; 6 channel; 12 channel
   Paper size     210mm*20m



Packing list:

Name QTY Name QTY

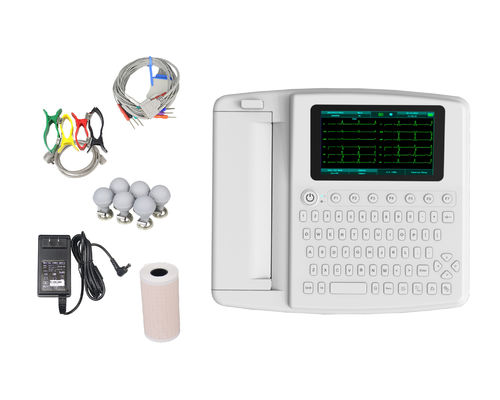

ECG machine 1 Print paper 1 roll
ECG cable 1 Power line 1
Limb electrodes 4 Operation manual 1
Chest electrodes 6


Medical Printer Touch Screen ECG Machine 12 Channel 0Medical Printer Touch Screen ECG Machine 12 Channel 1



Medical Printer Touch Screen ECG Machine 12 Channel 2Medical Printer Touch Screen ECG Machine 12 Channel 3









Company Profile



Hunan Rainbow Technology Limited Corporation is the pioneer manufacturer of high technology medical equipment, meantime, it is also the leader of domestic monitor innovation. Since the foundation of 1997, company always dedicated on the research and production of clinical monitor. Products cover fetal monitor, maternal-fetal monitor, multi-parameter monitor, central monitoring network system and so on, with cost-effective price and high quality! Company stick to customer demand orientation, and pursue the goal of customer satisfaction as service principle. All the equipments have our promise of two year replacement and life time warranty. The registered capital of company is 10 million RMB. The capacity of annual production mount up to 10000 sets. The "Rainbow" brand treatment monitor of our company have been rated as Hunan famous brand. Company stick to small profit but quick return and integrity management principle. Popular products (multi-parameter monitor) occupied 50% above of domestic market share. Heading for a goal of more professional, large scale, and more international.



FAQ
1. who are we?
We are based in Hunan, China, start from 1997,sell to Domestic Market(50.00%),Southeast Asia(15.00%),Africa(10.00%),Central America(10.00%),Mid East(8.00%),South Asia(7.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Multi parameter Patient Monitor,ECG Machine,Infusion Pump,Syringe Pump,Nutritional Pump

4. why should you buy from us not from other suppliers?
Hunan Rainbow Technology Co,Ltd is a professional manufacturer and wholesaler in monitor with 19-year experience. In order to meets the marketing demand, our company cooperate with the America RMS Company to release a serials of PM-9000 parameters monitor.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
