Product Details:
|
| Product Name: | Vet Electrocardiogram | Sensitivity: | 5，10，20mm/mV |
|---|---|---|---|
| Recorder: | High Resolution Thermal Printer | Battery: | Built-in Rechargeable Li-ion Battery 11.1V(2200mAh) |
| Warranty: | 1 Year | Port: | Guangzhou/Shanghai/Shenzhen |
| High Light: | 12 Lead Electrocardiogram Ecg Machine,3 Channel Electrocardiogram Ecg Machine,Veterinary Medical ECG Machine |
||

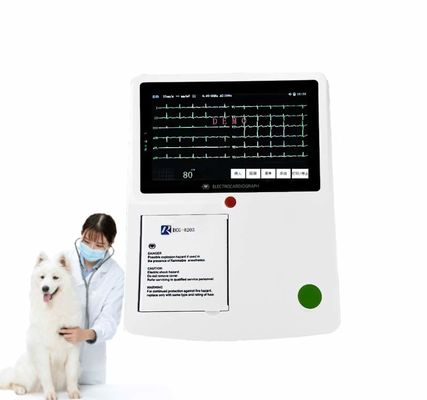

Veterinary medical equipment 12 lead ecg ekg electrocardiogram ecg machine 3 channel printer PC software
Features:
1. Modern in design, light in weight, compact in size.
2. Simultaneously acquisition of 7 lead, full screen display of 7 channel ECG waveforms.
3. 7'' color touch screen.
4. Sensitive filters of ADS, HUM, and EMG.
5. Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
6. Automatic adjustment of baseline for optimal recording.
7. Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
Parameters of ECG Machine
| CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mV± 3% |
| Input circuit | Floating | Voltage tolerance | ± 500mV |
| Input circuit current | ≤ 0.1µ A | Time constant | > 3.2s |
| Resolution | 12bit/1000Hz | Frequent response | 0.05Hz~150Hz |
| Operation mode | Manual/Auto | Noise level | ≤ 15µ Vp-p |
| Filter | AC. EMG Filter | Threshold | ≤ 20µ V |
| Drift filter | Anti-Drift System | Paper speed | 12.5, 25, 50mm/s (± 3%) |
| Input Impedance | > 50MΩ | Sensitivity | 5,10,20mm/mV |
| Patient current leakage | < 10µ A | Recorder | High resolution thermal printer |
| Specification of fuse | T1.6A 250V Ø5×20 | Battery | Built-in rechargeable Li-ion battery 11.1V(2200mAh) |
| Recording paper | Thermal recording paper |
Company Profile
Hunan Rainbow Technology Limited Corporation is the pioneer manufacturer of high technology medical equipment, meantime, it is also the leader of domestic monitor innovation. Since the foundation of 1997, company always dedicated on the research and production of clinical monitor. Products cover fetal monitor, maternal-fetal monitor, multi-parameter monitor, central monitoring network system and so on, with cost-effective price and high quality! Company stick to customer demand orientation, and pursue the goal of customer satisfaction as service principle. All the equipments have our promise of two year replacement and life time warranty. The registered capital of company is 10 million RMB. The capacity of annual production mount up to 10000 sets. The "Rainbow" brand treatment monitor of our company have been rated as Hunan famous brand. Company stick to small profit but quick return and integrity management principle. Popular products (multi-parameter monitor) occupied 50% above of domestic market share. Heading for a goal of more professional, large scale, and more international.
Contact Person: Mrs. Lily
