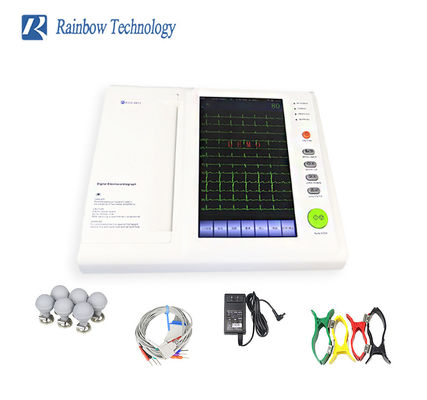

Portable 12 Channels 12 Leads Medical ECG Machine

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

Portable 12 Channels 12 Leads Medical ECG Machine

Portable 12 Channels 12 Leads Medical ECG Machine
Portable 12 Channels 12 Leads Medical ECG Machine
Portable 12 Channels 12 Leads Medical ECG Machine Portable 12 Channels 12 Leads Medical ECG Machine Portable 12 Channels 12 Leads Medical ECG Machine Portable 12 Channels 12 Leads Medical ECG Machine Portable 12 Channels 12 Leads Medical ECG Machine Portable 12 Channels 12 Leads Medical ECG Machine

Large Image :  Portable 12 Channels 12 Leads Medical ECG Machine

Product Details:
Place of Origin: Hunan, China
Brand Name: RAINBOW
Certification: ISO13485,FSC
Model Number: ECG-8812
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US $555-630/unit
Packaging Details: Carton box dimension: 45*21*39cm Gross Weight: 5.47kg
Delivery Time: Within 3 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000units/year

Portable 12 Channels 12 Leads Medical ECG Machine

Description
Product Name: ECG/EKG Machine Warranty: 1 Year
Power Source: Electricity/ Removable Battery Instrument Classification: Class II
Numbers Of Channels: 12-channel Packaging Details: Anti-Collision Film/Carton Box
Port: Guangzhou/Shanghai/Shenzhen
High Light:

12 Leads Medical ECG Machine

,

Portable 12 Channels Medical ECG Machine



12 Channels 12 Leads Medical ECG Machine Portable Stress Test Ecg System EKG Electrocardiograph





Function Features of ECG Machine

  • 7'' color touch-screen, both push-button and touch operation.
  • Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
  • Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
  • Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.
  • Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.
  • Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
  • Adapt to 100-240V, 50/60Hz AC power supply
  • Historical data and patient’s information can be reviewed and printed.
  • The machine can store over 500 ECG reports in its built-in flash.
  • Standard RS232 and USB communication interfaces.
  • Connect with PC via ECG workstation software.
  • The device can record real time clear and exact 12 channel ECG waveform and remark continually.
  • The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
  • Portable design with hidden handle, convenient to carry.
  • 7 level printing thick can be chosen.


Portable 12 Channels 12 Leads Medical ECG Machine 0Portable 12 Channels 12 Leads Medical ECG Machine 1

Portable 12 Channels 12 Leads Medical ECG Machine 2Portable 12 Channels 12 Leads Medical ECG Machine 3

Portable 12 Channels 12 Leads Medical ECG Machine 4

Portable 12 Channels 12 Leads Medical ECG Machine 5

Portable 12 Channels 12 Leads Medical ECG Machine 6

Portable 12 Channels 12 Leads Medical ECG Machine 7

Portable 12 Channels 12 Leads Medical ECG Machine 8

Portable 12 Channels 12 Leads Medical ECG Machine 9



Parameters of ECG Machine



CMRR ≥ 100dB, with AC Filter Calibrating voltage 1mV± 3%
Input circuit Floating Voltage tolerance ± 500mV
Input circuit current ≤ 0.1µ A Time constant > 3.2s
Resolution 12bit/1000Hz Frequent response 0.05Hz~150Hz
Operation mode Manual/Auto Noise level ≤ 15µ Vp-p
Filter AC. EMG Filter Threshold ≤ 20µ V
Drift filter Anti-Drift System Paper speed 12.5, 25, 50mm/s (± 3%)
Input Impedance > 50MΩ Sensitivity 5,10,20mm/mV
Patient current leakage < 10µ A Recorder High resolution thermal printer
Specification of fuse T1.6A 250V Ø5×20 Battery Built-in rechargeable Li-ion battery 14.8V(4000mAh)
Recording paper Thermal recording paper Package 365mm×306mm×109mm



Packing

Packing terms: Anti-collision film+ Carton box

Carton box dimension: 45*21*39cm

Gross weight: 5.47kg

Shipping:

Air shipping or Express courier is recommended if the order quantity was less than 20 units. It usually takes around 7 days to reach the destination. By ocean shipping, it normally takes 20-40 days depending on the destination port.



FAQ

What is your MOQ?

1 unit

What is your lead time?

Within 3 days after receiving the payment

What is the payment terms?

TT(Bank Transfer), Paypal, Western Union, Moneygram, XTransfer.

What is the warranty period?

1 year warranty period

Lifetime online technical support

Do you offer OEM service?

Yes, we do
