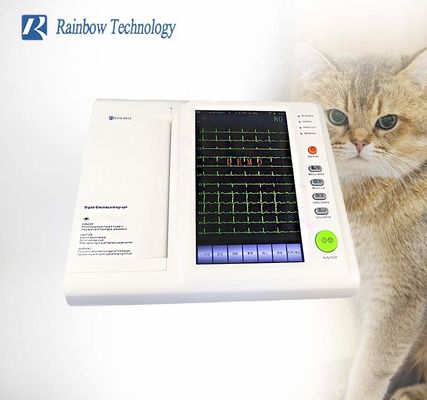

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine
7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine
7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine

Large Image :  7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine

Product Details:
Place of Origin: Hunan, China
Brand Name: RAINBOW
Certification: ISO13485,FSC
Model Number: ECG-8812
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US $555-630/unit
Packaging Details: Carton box dimension: 45*21*39cm Gross Weight: 5.6kg
Delivery Time: Within 3 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000units/year

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine

Description
Product Name: Veterinary ECG Machine Warranty: 1 Year
Power Source: Electricity Instrument Classification: Class II
Numbers Of Channels: 12 Display: 7" Color LCD
High Light:

12 Leads Veterinary ECG Machine

,

12 Channels Veterinary ECG Machine

7 Inch Touch Screen 12 Channels 12 Leads Veterinary Vet Ekg Electrocardiogram Ecg Machine





Function Features of ECG Machine

  • 7'' color touch-screen, both push-button and touch operation.
  • Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
  • Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
  • Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.
  • Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.
  • Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
  • Adapt to 100-240V, 50/60Hz AC power supply
  • Historical data and patient’s information can be reviewed and printed.
  • The machine can store over 500 ECG reports in its built-in flash.
  • Standard RS232 and USB communication interfaces.
  • Connect with PC via ECG workstation software.
  • The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
  • Portable design with hidden handle, convenient to carry.
  • 7 level printing thick can be chosen.

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 07 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 1
7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 27 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 3

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 47 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 5

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 6

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 7

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 8

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 9

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 10

7 Inch Touch Screen 12 Channels 12 Leads Veterinary ECG Machine 11



Parameters of ECG Machine



CMRR ≥ 100dB, with AC Filter Calibrating voltage 1mV± 3%
Input circuit Floating Voltage tolerance ± 500mV
Input circuit current ≤ 0.1µ A Time constant > 3.2s
Resolution 12bit/1000Hz Frequent response 0.05Hz~150Hz
Operation mode Manual/Auto Noise level ≤ 15µ Vp-p
Filter AC. EMG Filter Threshold ≤ 20µ V
Drift filter Anti-Drift System Paper speed 12.5, 25, 50mm/s (± 3%)
Input Impedance > 50MΩ Sensitivity 5,10,20mm/mV
Patient current leakage < 10µ A Recorder High resolution thermal printer
Specification of fuse T1.6A 250V Ø5×20 Battery Built-in rechargeable Li-ion battery 14.8V(4000mAh)
Recording paper Thermal recording paper Package 365mm×306mm×109mm
FAQ

What is your MOQ?

1 unit

What is your lead time?

Within 3 days after receiving the payment

What is the payment terms?

TT(Bank Transfer), Paypal, Western Union, Moneygram, XTransfer.

What is the warranty period?

1 year warranty period

Lifetime online technical support

Do you offer OEM service?

Yes, we do
