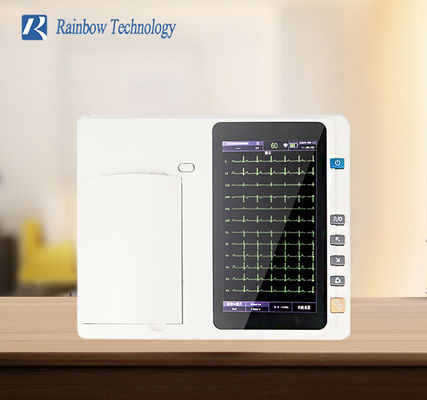

Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen

Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen
Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen

Large Image :  Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen

Product Details:
Place of Origin: Hunan,China
Brand Name: RAINBOW
Certification: ISO13485,FSC
Model Number: ECG-8203
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: USD 240-268
Packaging Details: carton box
Delivery Time: Within 3-5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000units/year

Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen

Description
Certificate: ISO13485,FSC Brand Name: RAINBOW
Material: Plastic
High Light:

Automatic Digital Ekg ECG Machine

,

Ekg ECG Machine 12 Lead

,

7 Inch Touch Screen ECG Machine

7 Inch Touch Screen 12 Lead Automatic Digital Ekg Durable Delivery Fast ECG Machine



Function features of ECG machine



Portable Auto-analysis 6 Channel Electrocardiograph

Brand: Rainbow
Size: 7 inch
Model: ECG-8206
manufacturer: Hunan Rainbow Technology Co., Ltd



Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen 0

Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen 1

1,Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
2,Both push-button and touch operation, simple and practical
3,7-inch colorful TFT-LCD display, more powerful functions
4,Electrocardiogram automatic measurement, diagnostic and analysis. Self-Determined whether to print analysis report
5,Lead off detection function with sound indication,real-time ECG waveform freezing
6,Multiple operation modes: manual, automatic, rhythm, physical examination
7,Support high-capacity SD memory,real-time storage of waveforms and diagnostic analysis
8,Built-in rechargeable li-ion battery, AC/DC power conversion.
9,High-performance processors and thermal plotting integration printer
10,Portable with only 1.2kg weight, convenient to carry it outside for diagnoses.



Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen 2

ECG8206(6 Channel ECG Machine)Parameters

Size 255mm×205mm×65mm
Weight Approximately 1.2kg
Resolution 800×480, 7-inch colorful TFT-LCD display
Operation Push-button and touch











Working Environment

  Transportation and storage Operation
Temperature -20℃~55℃ 5℃~40℃
Relative Humidity 25%~95% 25%~85%
Atmospheric pressure 70kPa ~106kPa 70kPa ~106kPa















Power Supply

AC Rated voltage=90V-240V
Rated frequency=50Hz/60Hz
Rated power=35VA

DC



(Built-in rechargeable li-ion battery)

Rated capacity=2200mAh
Rated voltage=10.8V
Discharge End Voltage ≥9V
Recharge mode:CC/CV
Recharging current(standard)=0.2C5A (440mA)
Recharging voltage(standard)=(13±0.1V)
Maximum continuous charge current=2200mA
Max. Continuous Discharge Current=2200mA
Cycle life≥300 times
Power dissipation 35VA(Max.)
Fuse specification T200mA 250V Ø5×20



Recorder Recording mode Thermal dot matrix recording
Recording paper Scroll thermal recording paper
Recording paper width 112mm
Effective recording width 105mm
Paper speed 10 mm/s,25mm/s, 50mm/s(±3%)
Recording accuracy ±5%(X axis),±5%(Y axis)



Heart rate calculation Calculating method Peak detecting
Heart rate variability 30BPM~300BPM
Calculation accuracy ±1 BPM



ECG

Mainframe

Input mode Floating, defibrillation protection,pacemaker pulse rejection
Lead 12 standard leads,Auto-switching leads
Operation mode Simultaneously 12 channel
A/D switching 12 / 16/ 24
Measurement range > ±5mV
Time constant ≥ 3.2s
Frequent response 0.05Hz ~ 150Hz
Sensitivity 2.5,5,10,20 (mm/mV)
Input impedance 50MAutomatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen 3(10Hz)
Input circuit current ≤ 50nA
Input voltage tolerance < ±5 mVpp
Calibrating voltage 1mV±3%
Noise level < 15Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen 4Vp-p
Inter-Channel Interference ≤ 0.5mm
Patient current leakage < 10Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen 5A (220V-240V/50Hz)
Patient auxiliary current leakage < 0.1Automatic Digital Ekg ECG Machine 12 Lead Durable With 7 Inch Touch Screen 6A (DC)
Insulation strength 4000V rms
Filter AC filter ON/OFF
Baseline drift filter 0.05/0.15/0.25/0.5/ADP
EMG filter 25Hz,35Hz,OFF
Low-pass filters 150Hz/100Hz/75Hz
CMRR >100dB
