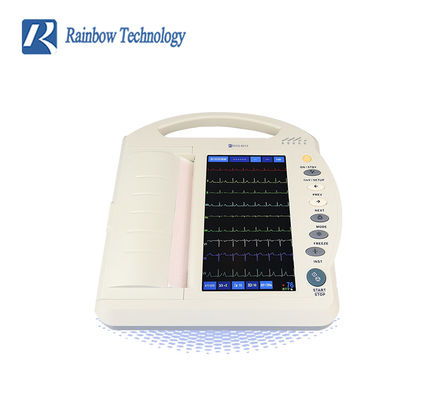

Touch Screen EKG ECG Machine

Touch Screen EKG ECG Machine
Touch Screen EKG ECG Machine Touch Screen EKG ECG Machine

Large Image :  Touch Screen EKG ECG Machine

Product Details:
Place of Origin: Hunan, China
Brand Name: RAINBOW
Certification: ISO13485, FSC
Model Number: ECG-8212
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US $565-600/unit
Packaging Details: Anti-collision film+ Carton box
Delivery Time: Within 3 days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 30000units/year

Touch Screen EKG ECG Machine

Description
Power Source: Electricity Warranty: 1 Year
After-sale Service: Online Technical Support Shelf Life: 2 Years
OEM/ODM: Available Lead: 12 Leads
Channel: 12 Channels Optional: Printer
High Light:

12 Channels EKG ECG Machine

,

Touch Screen EKG ECG Machine

Medical Supply Electrocardiograph 12 Leads 12 Channels Touch Screen EKG ECG Machine In Stock



Touch Screen EKG ECG Machine 0

Function features of ECG machine



1,Simultaneously acquisition of 12 lead,

2,10.1-inch colorful LCD display,touch screen,full screen display of 12 channel ECG waveforms.

3,Possible to input hospital, name, gender, age and other information through built-in software touchable keyboard.

4,High-performance processors and thermal plotting integration printer with the function of adjusting printing speed and heat to ensure printing performance in 210mm,215mm and 216mm recording paper.

5,Real-time ECG waveform frozen function to grab crucial ECG waveforms of patients.

6,Input signal grounding function for situation of low signal or over-load signal caused by patient movements. Screen displays straight lines and signal will recover after a few seconds.

7,Precise ECG auto-diagnostic function with common arrhythmia examples for reference.

8,Electrocardiogram automatic precise measurement with heart rate limit alarm, diagnostic and analysis. Self-Determined whether to print analysis report

9,Enable to choose and set whether to print characteristic waveforms.

10,WiFi network interface for PC wireless communication. Possible to visit via PC, download and print ECG data. (Extended function)

11,Hugh-capacity storage(more than 200 cases),with case data storage,playback and print. Enable to delete and empty current case in the storage.

12,12 channel/ 6 channel/(6+rhythm)channel/(3+rhythm+V1+V5)channel/9 channel/single channel, five ECG display combined modes.

13,(3+rhythm+V1+V5)channel/6 channel/(6+rhythm)channel/12 channel/ (12+rhythm) channel/9 channel/ (9+thythm) channel /single channel, eight ECG record combined modes.

14,Automatic, pre-sampling, manual, single lead one minute (60s), rhythm analysis (single lead sampling takes 300 seconds, print histogram and trend graph) and multiple operation modes.

15,Built-in rechargeable li-ion battery(14.8V 4400mAh);

16,Screen protection function(AC mode,5 minute without any operations)and long-time auto power off function(DC,5 minute without any operations);

17,Lead-fall, low paper detection and indication function.

18,Beautiful in design with portable handle to carry conveniently.

19,Wide-range power supply,suitable for 100V~230V±10%,45Hz~60Hz±2% AC.



Touch Screen EKG ECG Machine 1



Technical Parameters



CMRR >100dB with filter, >89dB without filter

Calibration Voltage



1mV±2%

Input circuit



Floating, defibrillation protection



Polarization Voltage



±500mV

Input circuit current



≤0.1µA

Time constant



≥3.2s

Data acquisition



1000 samples/channel/second

Noise Level



≤15µVp-p

Input impedance



DC signals≥50MΩ,

AC signals≥2.5MΩ

Patient Current Leakage



<10µA
              Filter AC filter (50Hz or 60Hz, -20dB)
EMG filter (25Hz/35Hz/45Hz/75Hz/100Hz,-3.0dB)
Drift filter (0.5Hz,-3.0dB)

Frequency response



0.05~150Hz(-3.0dB - +0.4dB)under 10Hz



Operation Mode



automatic,manual,single channel 60s compressed record, Rhythm analysis (R-R histogram and trend chart)



Printing speed



5,6.25,10,12.5,25,50mm/s±3%

Printing system



Built-in thermal printer

Recording sensitivity



1.25,2.5,5,10,20,40mm/mV±2%

Fuse Specification



T3.15A 250V Ø5×20mm
        Power supply

14.8V 4400mAh rechargeable Li-ion battery pack (DC)



100V~230V±10%, 45Hz~60Hz±2%, 100VA (AC)



Thermal paper



216/210/215mm(width)×20M(length) thermal paper in rolls (paper core diameter≥12mm)
      Mainframe size 330(length)×332(width)×87(height)mm Net weight 4.10kg
       Gross weight 6.70kg(1 unit/box with accessories), 14.55kg (2 unit /box with accessories)
       Package size 43×40×22.5cm(1 unit/box), 45×41.5×48cm( 2 unit /box)






Packing list:

Name QTY Name QTY
ECG machine 1 Fuse 2
ECG cable 1 Operation manual 1
Limb electrodes 4
Chest electrodes 6
Grounding wire 1
Print paper 1 roll
Power line 1


Touch Screen EKG ECG Machine 2
