Product Details:
|
| Brand Name: | RAINBOW | Product Name: | ECG Machine |
|---|---|---|---|
| OEM: | Yes | Weight: | 1.4 Kg |
| Material: | Metal Plastic | ||
| High Light: | 3.5 Inch Multi Channel ECG Machine,Portable Multi Channel ECG Machine,Light Weight ECG Machine With Diagnosis |
||
Function Features of ECG Machine
| Brand: | Rainbow |
| Size: | 3.5 inch |
| Model: | ECG-8201 |
| manufacturer: | Hunan Rainbow Technology Co., Ltd |
| Function Features of ECG Machine |
| 1.Built-in rechargeable li-ion battery, 8-hour battery life |
| 2.Light-weight,exquisite and easy to carry |
| 3.Full screen display of 12 channel ECG waveforms |
| 4.3.5 inch wide-screen |
| 5.Multiple operation modes: manual, automatic, rhythm, physical examination |
| 6.Digital single channel automatic measurement, analysis and diagnosis with report printing |
| 7.No need to install. Best choice for first aid and shift |
| Standard configuration: |
| ECG8201 Electrocardiograph mainframe |
| ECG suction bulb – one pair |
| 12-channel ECG lead |
| AC adaptor |
| Grounding wire |
| Body/limb clamp – one set |
| Power line |
| Thermal print paper- two rolls |
| Print paper scroll |
| Operation manual |
| Parameters of ECG Machine |
| Operation mode:Manual/Auto/storage |
| Standard 12 leads:real-time ECG waveforms |
| Measure mode:Simultaneously acquisition of 12 lead, |
| Measure frequency:12Bit/1000Hz(1ms) |
| AC filter:50Hz/60Hz |
| EMG filter:25Hz/45Hz |
| Drift filter:Auto adaption |
| CMRR:≥95dB |
| Input circuit:Floating with defibrillation protection |
| Frequent response:0.05-160Hz(-3db) |
| Sensitivity:Auto/2.5/5/10/20/40(mm/mv) |
| Printing:High resolution thermal printer |

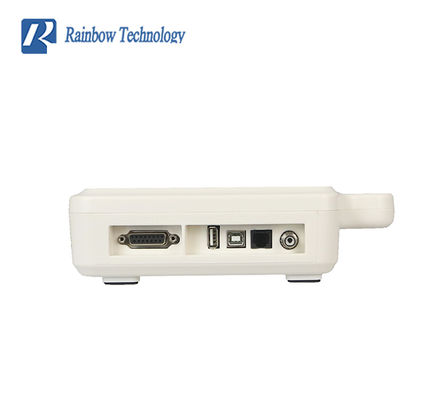

| Communication interface:Standard USB/RS232 |
| Safety standard:IEC I CF(GB9706.1-2007) |
| Keypad panel:can input clinic information such as patient names |
| Display:320*240 Graphical LCD |
| Internal power supply:built-in rechargeable li-ion battery for 8-hour battery life |
| External power supply:AC 75V-265V Auto adjustment for wide input range |
