Product Details:
|
| Szie: | 10.1 Inch | Weight: | 5.6 Kg |
|---|---|---|---|
| Brand Name: | RAINBOW | OEM: | YES |
| High Light: | Touch Operation Medical ECG Machine,Thermal Printer Medical ECG Machine,FSC ECG Monitor Machine |
||
Specification of 12 Channels Electrocardiograph
Function Features of ECG Machine
| 1. Modern in design, light in weight, compact in size. |
| 2. Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms. |
| 3. 7'' color touch-screen, both push-button and touch operation. |
| 4. Sensitive filters of ADS, HUM, and EMG. |
| 5. Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency. |
| 6. Automatic adjustment of baseline for optimal recording. |
| 7. Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz. |
| 8. Lead off & lack off paper detection function. |
| 9. Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion. |
| 10. Adapt to 100-240V, 50/60Hz AC power supply |
| 11. Historical data and patient’s information can be reviewed and printed. |
| 12. Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software. |
| 13. The machine can store over 500 ECG reports in its built-in flash. |
| 14. Standard RS232 and USB communication interfaces. |
| 15.Connect with PC via ECG workstation software. |
| 16. Sleep mode to save energy and extend LCD life |
| 17. The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc. |

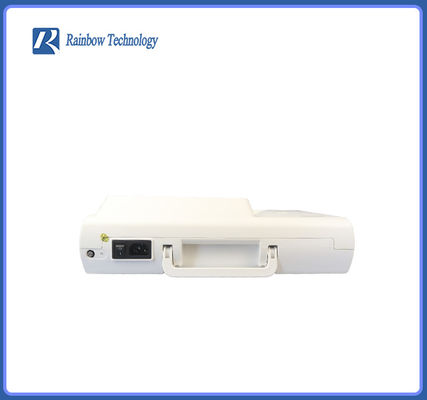

| 18. Portable design with hidden handle, convenient to carry. |
| 19. 7 level printing thick can be chosen. |
Parameters of ECG Machine
| CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mV± 3% |
| Input circuit | Floating | Voltage tolerance | ± 500mV |
| Input circuit current | ≤ 0.1µ A | Time constant | > 3.2s |
| Resolution | 12bit/1000Hz | Frequent response | 0.05Hz~150Hz |
| Operation mode | Manual/Auto | Noise level | ≤ 15µ Vp-p |
| Filter | AC. EMG Filter | Threshold | ≤ 20µ V |
| Drift filter | Anti-Drift System | Paper speed | 12.5, 25, 50mm/s (± 3%) |
| Input Impedance | > 50MΩ | Sensitivity | 5,10,20mm/mV |
| Patient current leakage | < 10µ A | Recorder | High resolution thermal printer |
| Specification of fuse | T1.6A 250V Ø5×20 | Battery | Built-in rechargeable Li-ion battery 14.8V(4000mAh) |
| Recording paper | Thermal recording paper | Package | 365mm×306mm×109mm |
Unit Package
45*21*39
