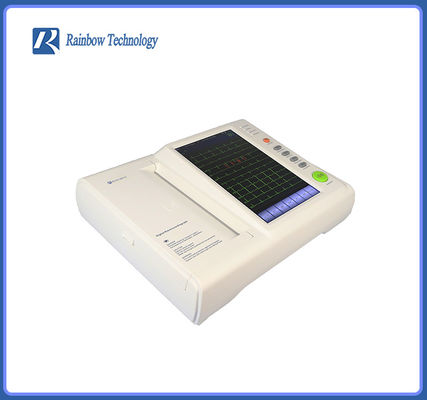

Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor

Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor
Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor

Large Image :  Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor

Product Details:
Place of Origin: Hunan, China
Brand Name: RAINBOW
Certification: ISO13485,FSC
Model Number: ECG-8812
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 567.0-630.0
Packaging Details: Carton box dimension: 45*21*39cm
Delivery Time: Within 3 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000units/year

Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor

Description
Size: 7 Inch Weight: 5.6kg
Brand Name: ECG Machine
High Light:

Auto Analyze Medical ECG Machine

,

Compact Medical ECG Machine

,

Portable 12 Lead ECG Monitor

Hospital Equipment Light Weight High Quality Medical ECG Machine



Function Features of ECG Machine

  • 7'' color touch-screen, both push-button and touch operation.
  • Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.



  • Modern in design, light in weight, compact in size.
  • Sensitive filters of ADS, HUM, and EMG.
  • Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
  • Automatic adjustment of baseline for optimal recording.
  • Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.
  • Lead off & lack off paper detection function.
  • Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.
  • Adapt to 100-240V, 50/60Hz AC power supply
  • Historical data and patient’s information can be reviewed and printed.
  • Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
  • Standard RS232 and USB communication interfaces.



  • The machine can store over 500 ECG reports in its built-in flash.
  • Connect with PC via ECG workstation software.
  • Sleep mode to save energy and extend LCD life
  • The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark includes: lead sign, sensitivity, paper speed, filter state, etc.
  • Portable design with hidden handle, convenient to carry.
  • 7 level printing thick can be chosen.



Auto analyze Medical ECG Machine compact Portable 12 Lead ECG Monitor 0



Parameters of ECG Machine



CMRR ≥ 100dB, with AC Filter Calibrating voltage 1mV± 3%
Input circuit Floating Voltage tolerance ± 500mV
Input circuit current ≤ 0.1µ A Time constant > 3.2s
Resolution 12bit/1000Hz Frequent response 0.05Hz~150Hz
Operation mode Manual/Auto Noise level ≤ 15µ Vp-p
Filter AC. EMG Filter Threshold ≤ 20µ V
Drift filter Anti-Drift System Paper speed 12.5, 25, 50mm/s (± 3%)
Input Impedance > 50MΩ Sensitivity 5,10,20mm/mV
Patient current leakage < 10µ A Recorder High resolution thermal printer
Specification of fuse T1.6A 250V Ø5×20 Battery Built-in rechargeable Li-ion battery 14.8V(4000mAh)
Recording paper Thermal recording paper Package 365mm×306mm×109mm

Unit Package

  • 45*21*39cm

  • 3.6kg
