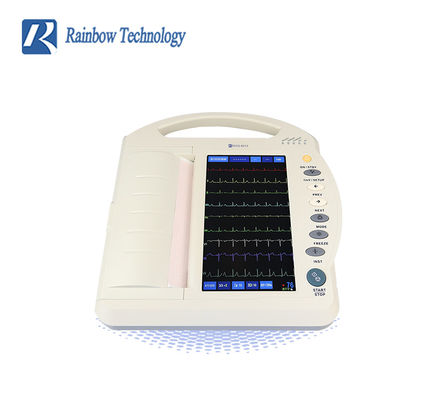

10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine

10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine
10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine
10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine 10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine 10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine 10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine 10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine 10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine

Large Image :  10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine

Product Details:
Place of Origin: Hunan, China
Brand Name: RAINBOW
Certification: ISO13485
Model Number: ECG-8212
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $567.00 - $630.00
Packaging Details: Anti-collision film+ Carton box Carton box dimension: 39*30*35cm Gross weight: 5.47kg
Delivery Time: Within 3 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 30000units/year

10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine

Description
Type: ECG Product Name: 12 Channels ECG Mobile
Instrument Classification: Class II Warranty: 24 Months After Shipment
After-sale Service: Online Technical Support Inventory: Yes
MOQ: 1 Size: 10.1 Inch
High Light:

10.1 Inch 12 Channel ECG Machine

,

EKG 12 Channel ECG Machine

,

Hospital 12 Lead EKG Machine

10.1 Inch 12 Channel ECG Machine Medical Equipment 12 Lead Portable Ekg Electrocardiography Hospital

 10.1 Inch 12 Channel ECG Machine Hospital 12 Lead EKG Machine 0
12-Channel Electrocardiograph
Product name:digital 12 channel ECG machine
Product code: ECG-8812

Function features of ECG machine
1,Simultaneously acquisition of 12 lead,
2,10.1-inch colorful LCD display,touch screen,full screen display of 12 channel ECG waveforms.
3,Possible to input hospital, name, gender, age and other information through built-in software touchable keyboard.
4,High-performance processors and thermal plotting integration printer with the function of adjusting printing speed and heat to ensure printing performance in 210mm,215mm and 216mm recording paper.
5,Real-time ECG waveform frozen function to grab crucial ECG waveforms of patients.
6,Input signal grounding function for situation of low signal or over-load signal caused by patient movements. Screen displays straight lines and signal will recover after a few seconds.
7,Precise ECG auto-diagnostic function with common arrhythmia examples for reference.
8,Electrocardiogram automatic precise measurement with heart rate limit alarm, diagnostic and analysis. Self-Determined whether to print analysis report
9,Enable to choose and set whether to print characteristic waveforms.
10,WiFi network interface for PC wireless communication. Possible to visit via PC, download and print ECG data. (Extended function)





Technical Parameters

CMRR >100dB with filter, >89dB without filter

Calibration Voltage



1mV±2%

Input circuit



Floating, defibrillation protection


Polarization Voltage



±500mV

Input circuit current



≤0.1µA

Time constant



≥3.2s

Data acquisition



1000 samples/channel/second

Noise Level



≤15µVp-p

Input impedance



DC signals≥50MΩ,
AC signals≥2.5MΩ

Patient Current Leakage



<10µA
Filter AC filter (50Hz or 60Hz, -20dB)
EMG filter (25Hz/35Hz/45Hz/75Hz/100Hz,-3.0dB)
Drift filter (0.5Hz,-3.0dB)

Frequency response



0.05~150Hz(-3.0dB - +0.4dB)under 10Hz


Operation Mode



automatic,manual,single channel 60s compressed record, Rhythm analysis (R-R histogram and trend chart)


Printing speed



5,6.25,10,12.5,25,50mm/s±3%

Printing system



Built-in thermal printer

Recording sensitivity



1.25,2.5,5,10,20,40mm/mV±2%

Fuse Specification


T3.15A 250V Ø5×20mm
Power supply

14.8V 4400mAh rechargeable Li-ion battery pack (DC)


100V~230V±10%, 45Hz~60Hz±2%, 100VA (AC)


Thermal paper



216/210/215mm(width)×20M(length) thermal paper in rolls (paper core diameter≥12mm)
Mainframe size 330(length)×332(width)×87(height)mm Net weight 4.10kg
Gross weight 6.70kg(1 unit/box with accessories), 14.55kg (2 unit /box with accessories)
Package size 43×40×22.5cm(1 unit/box), 45×41.5×48cm( 2 unit /box)



Packing list:

Name QTY Name QTY
ECG machine 1 Fuse 2
ECG cable 1 Operation manual 1
Limb electrodes 4
Chest electrodes 6
Grounding wire 1
Print paper 1 roll
Power line 1
