Product Details:
|
| Instrument Classification: | Class II | Warranty: | 1 Year |
|---|---|---|---|
| Application: | ICU And OR,ICU,Personal Care,hospitals | Material: | Metal, Plastic |
| Power Source: | Electricity | After-sale Service: | Online Technical Support |
| Inventory: | Yes | MOQ: | 1 Unit |
| High Light: | Handheld Electric Infusion Pump,ISO Electric Infusion Pump,Infusion Pump Medical Device |
||

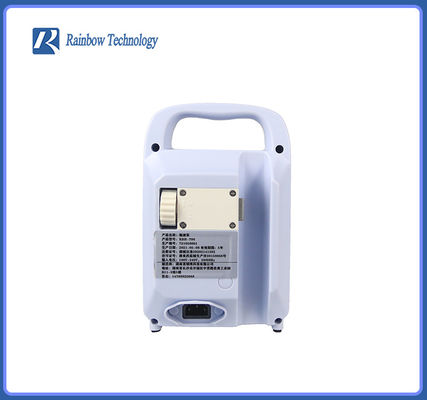

ISO Certificated Medical Device Hospital Clinic Handheld Electric Peristaltic Infusion Pump
| Main features | Reliable and Safe: 1, Additional set of bubble alarm design(double bubble alarm) ensure more secure infusion; 2, Advanced safety design able to stop infusion and alarm even if the CPU damage,the medical staff can ues it safely; multipurpose: It can be transfused, transfused blood and transported nutrient solution. |
| Pumping way | Semi-squeeze finger-type peristaltic pump |
| IV-sets | Special or quality PVC/TPE infusion sets with an external diameter of 3.4mm~4.5mm |
| User options | no |
| Infusion modes | 4 infusion modes: 1, Flow-rate: ml/h; 2, Time-amount: ml/h; 3, Drop-rate: d/min; 4, Body-weight: mg/kg/h |
| Parameter range | 1, Flow-rate: 1.0~1200.0 ml/h, 0.1ml/h step; 2, Time: 1s~99h59m59s, 1s step; 3, Drop-rate: 1~333 d/min, 1 d/min step; 4, Dose: 0.1~999.9 mg, 0.1mg step; 5, mg/kg/h: 0.001~999.999 mg/kg/h, 0.001 mg/kg/h step; 6, Body-weight: 1~300 kg, 1kg step; 7, KVO rate: 1.0~5.0 ml/h, 0.1 ml/h step; 8, Bolus rate: 50.0~800.0 ml/h, 0.1 ml/h step; 9, Bolus volume: 0.1~99.9 ml/h, 0.1ml step |
| Precision | Better than ±5% (using a calibrated or a special IV-set) |
Alarm:
1, Air in tube, 5 grades of sensitivity (double bubble alarm);
2, Bubble sensor fault;
3.1, Upper-end occlusion, -20~ -60 kPa,8 grades of sensitivity;
3.2, Upper-end base-pressure fault;
4.1, Lower-end occlusion, 20~ 140 kPa,8 grades of sensitivity;
4.2, Lower-end base-pressure fault;
5.1, Pump rotation fault;
5.2, Inverse-infusion;
6, Abnormal door-opening;
7, Low battery power, battery fault;
8, Overtime pause;
9, Completed infusion;
10, AC power fault;
11, MCU fault, and stop infusion;
12, Battery temperature is too high.
Data function:
1, Memory of calibration: Records the calibration data of tube automatically for application;
2, Memory of parameter: Records the latest infusion parameter for next operation;
3, Historical records: records latest 1000 infusion events.
(what/when/why,flow-rate, etc.)
| Safety classification | Class I; Internal power supply, CF type, IPX4 equipment |
| Power supply | AC 100~240V, 50/60Hz, Built-in rechargeable Li-battery |
| Power consumption:20VA | |
| Working time of battery: 7h@25ml/h | |
| Weight and size | 130mm(w)*206mm(h)*118mm(t); about 1.6kg |
| Optional accessories | 1, Warmer; 2, Wireless communicating module. |
| Chinese Certificate | yes |
Packing
Packing terms: Anti-collision film+ Carton box
Product Size: 10.1*12.5*9CM
Package Size: 27*21*17CM
Net Weight: 1.2kg
Gross Weight: 1.7kg
Shipping:
Air shipping or Express courier is recommended if the order quantity was less than 20 units. It usually takes around 7 days to reach the destination. By ocean shipping, it normally takes 20-40 days depending on the destination port.
