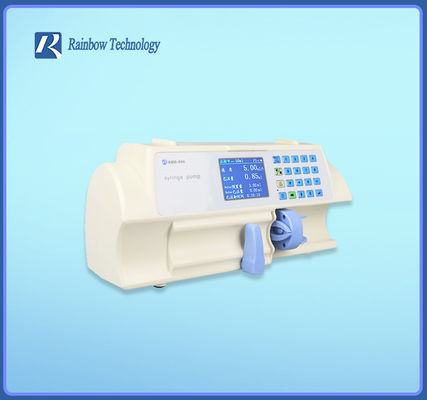

Large Image :  Large Screen Medical Syringe Pump Vacuum Automation Design

Product Details:
Place of Origin: Hunan, China
Brand Name: RAINBOW
Certification: ISO13485, FSC
Model Number: RBH-800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $567.0-630.0
Packaging Details: Product Size: 10.1*13,5*9CM Package Size : 27*21*17CM Net Weight: 1.2kg Gross weight : 1.7kg
Delivery Time: Within 3 days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 30000units/year

Large Screen Medical Syringe Pump Vacuum Automation Design

Description
Original: Hunan, China Product Name: Medical Syringe Pump
Weight: 1.2kg
High Light:

FSC Medical Syringe Pump

,

Vacuum Medical Syringe Pump

,

Automation Vacuum Syringe Pump

Portable Large Screen Medical Syringe Pump Volume Automation Design



Large Screen Medical Syringe Pump Vacuum Automation Design 0





Product description

1.The pressure detection sensor with its own patented technology is adopted, and the injection pressure detection is more accurate, which greatly reduces the false alarm or non-alarm .

2.The high-resolution motor drive chip is used to make the injection more uniform and the water pulsation is small, especially at low flow rate, which obviously improves the common defects of large water pulsation in ordinary injection pumps.

3.A unique circuit safety design is used to ensure safe infusion.

4.It has the function of historical operation record, and automatically records the parameters and stop reasons of each injection operation, which is convenient for users to query and provide basis for reducing doctor and patient relationship disputes.

5.It adopts full Chinese large screen display and digital key menu operation, which is intuitive and convenient.



Large Screen Medical Syringe Pump Vacuum Automation Design 1



Main features Reliable and Safe:
Advanced safety design able to stop infusion and alarm even if the CPU damage,the medical staff can ues it safely.
Applicable syringe 5ml,10ml,20ml,30ml,50/60ml
The maximum flow rate range 5ml syringe: 0.1ml/h~200ml/h
10ml syringe: 1ml/h~300ml/h
20ml syringe: 1ml/h~400ml/h
30ml syringe: 1ml/h~600ml/h
50/60ml syringe: 1ml/h~1200ml/h
Precision Better than ±2%;
(but 5ml syringe and <1ml/h: Better than ±8%)
Parameter range 1, Flow-rate: 0.1~1200.0 ml/h, 0.1ml/h step;
2, Dose: 0.1~999.9 mg, 0.1mg step;
3, mg/kg/h: 0.001~999.999 mg/kg/h, 0.001 mg/kg/h step;
4, Body-weight: 1~300 kg, 1kg step;
5, KVO rate: 0.1~5.0 ml/h, 0.1 ml/h step;
6, Bolus rate: 0.1~1200.0 ml/h, 0.1 ml/h step;
7, Bolus volume: 0.1~99.9 ml/h, 0.1ml step
Alarm 1, Occlusion,0~175KPa, 8 grades of sensitivity;
2, Pressure sensor is abnormal;
3, Push rod fall off;
4, The drug running out;
5, The injection will finish;
6, The motor rotation fault;
7, Overtime pause;
8, Low battery;
9, Battery failure;
10, Battery temperature is too high;
11, Mains missing tips;
12, MCU fault, and stop injection.
Data function 1, Memory of parameter: Records the latest injection parameter for next operation;
2, Historical records: records latest 1000 injection events.
(what/when/why,flow-rate, etc.)



Large Screen Medical Syringe Pump Vacuum Automation Design 2

Safety classification Class I; Internal power supply, CF type, IPX4 equipment
Power supply AC 100~240V, 50/60Hz, Built-in rechargeable Li-battery
Power consumption:20VA
Working time of battery: 10h@5ml/h
Weight and size 37cm(w)*24cm(h)*21cm(t); about 2.1kg
Optional accessories Wireless communicating module.
Chinese Certificate yes
