8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic

8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic
8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic
8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic 8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic 8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic 8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic 8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic 8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic

Large Image :  8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic

Product Details:
Place of Origin: Hunan, China
Brand Name: Rainbow
Certification: ISO13485
Model Number: PM-9000 8 inch black
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Anti-collision film+ Carton box Carton box dimension: 26.5*19.5*23.5cm Gross weight: 3kg
Delivery Time: Within 3 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000units/year

8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic

Description
Usage: ICU Screen: 8 Inch LCD Screen
Properties: Diagnosis & Injection Weight: 1.4kg
Product Name: Vital Signs Monitoring Machine For Adults Children Model Number: PM-9000 8inch
High Light:

8In Multi Parameter Patient Monitor

,

5Para Vital Signs Monitor

,

Dental Clinic Multiparameter Patient Monitor

8-Inch 5 Para Multi Parameter Patient Monitor Portable Vital Signs Monitoring Machine for Dental Clinic

Specification

8" color TFT LCD screen, resolution 800*600
● Waterproof design, resistance to dropping (1 meter)
● Support external 13-20V DC power, continuously working for 5.5 hours above on battery backup, full charge with 2.5 hours, suitable for Ambulance, Emergency Transport
● Display mode: Big font, trends review, 7 leads ECG waveform on same screen, and etc
● 15 kinds of arrhythmia analysis, 15 kinds of drug concentration analysis
● Anti-electro surgical unit (300W), anti-defibrillation (360J), suitable for Operating Room, General Ward
● Digital SpO2 technology, excellent anti- interference performance, low perfusion (0.1%)
 USB data output with software to view data on computer


Technical parameters

ECG
Lead
Standard 3/5 lead
Lead Mode
5 Leads (RA, LA, LL, RL,V)
Lead Selection
I, II, III, avR, avL, avF, V
Lead Mode
3 Leads (RA, LA, LL)
Lead Selection
I, II, III,
Gain
2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
HR and Alarm Range
Adult: 15 ~ 300 bpm
Ped/Neo: 15 ~ 350 bpm
Accuracy
±1% or±1bpm, which is greater
Resolution
1 bpm
Sensitivity
> 200 (uVp-p)
Differential Input Impedance
> 5 MΩ
Bandwidth
Surgery 1 ~ 20 Hz
Monitor 0.5 ~ 40 Hz
Diagnostic 0.05 ~130 Hz
CMRR:
Monitor > 100 dB
Operation > 100 dB
Diagnosis > 90 dB
Electrode Offset Potential:
±300mV
Range:
±2 mV ~ ±700 mV
Width:
0.1 ms ~ 2 ms
Rise time:
10 us ~ 100 us
ST Segment Monitoring Range:
Measurement Range: -2.0 ~ +2.0 mV
Measurement Accuracy: -0.8 ~ +0.8 mV
Measurement Error: ±0.02 mV or ±10%
SPO2
Measure range
0-100%
Resolution
1%
Accuracy
±2% (70-100%)
Pulse Rate
20-300 BPM
Resolution
1BPM
Accuracy
±3BPM
NIBP
Work Mode
Manual,Automatic, STAT
Method:
Oscillometric
Measuring Interval in Auto Mode:
1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240,480 (Min)
Measuring Period in STAT Mode:
5 Min
Pulse Rate Range:
40 ~ 240 bpm
Measuring and Alarm Range:
Adult
SYS 40 ~ 270 mmHg
DIA 10 ~ 215 mmHg
MEAN 20 ~ 235 mmHg
Pediatric
SYS 40 ~ 200 mmHg
DIA 10 ~ 150 mmHg
MEAN 20 ~ 165 mmHg
Neonatal
SYS 40 ~ 135 mmHg
DIA 10 ~ 100 mmHg
MEAN 20 ~ 110 mmHg
Static Pressure Range:
0 ~ 300 mmHg
Static Pressure Accuracy:
±3mmHg
Accuracy:
Maximum Average Error ±5mmHg
Maximum Standard Deviation ±8mmHg
Over pressure Protection:
Adult Mode: 300 mmHg
Pediatric Mode: 240 mmHg
Neonatal Mode: 150 mmHg
RESP
Method:
Impedance Between RA-LL or RA-LA
Measuring Impedance Range:
0.3~3 Ω
Base line Impedance Range:
200~4 KΩ
Bandwidth:
0.1~2.5Hz
Measuring and Alarm Range:
Adult: 2 ~ 120 BrPM
Neo/Ped: 2 ~ 150 BrPM
Resolution: 1 BrPM
Accuracy: ±2 BrPM
Apnea Alarm: 10 ~ 40 S
TEMP
Applicable Temperature Sensor:
YSI, CYF
Channel:
1
Measure range
0-50ºC
Resolution
±0.1 ℃
Accuracy
±0.1 ℃ (Do not including sensor error)

Detail images

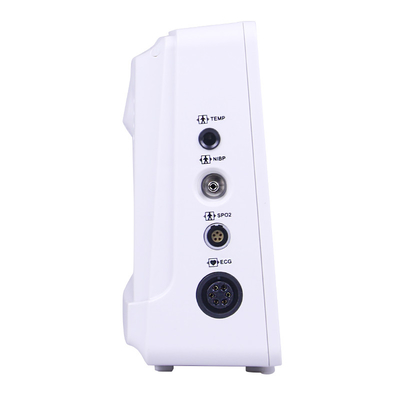

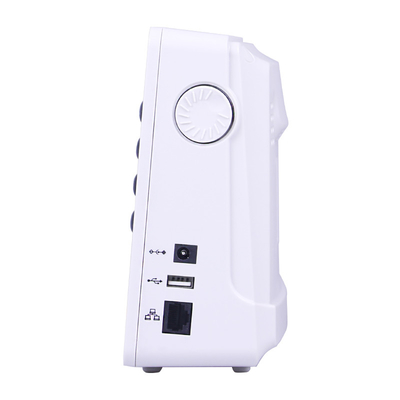

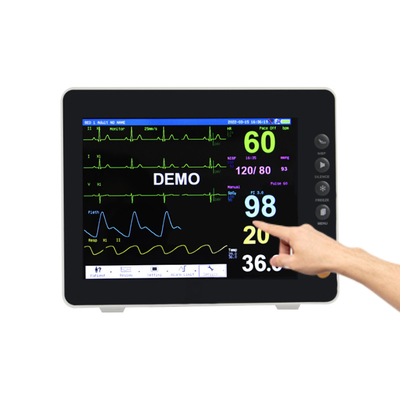

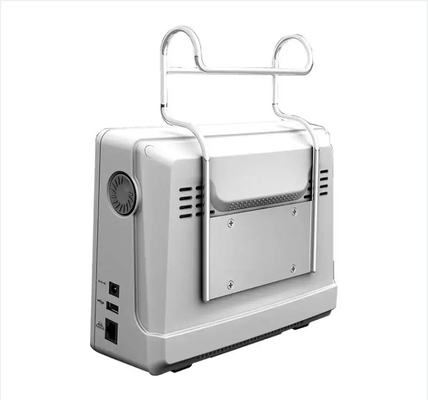

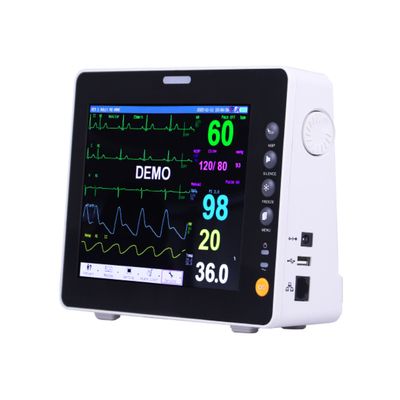

8 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic 08 Inch 5 Para Multi Parameter Patient Monitor Vital Signs Monitoring for Dental Clinic 1
