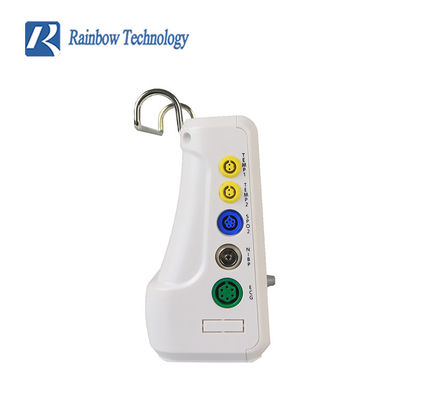

Product Details:
|
| Weight: | 1.6KG | Color: | White |
|---|---|---|---|
| Material: | Plastic | ||
| High Light: | Vehicle Mounted Patient Monitor Multiparameter,Portable Patient Monitor Multiparameter,1.6KG Portable ICU Monitor |
||
| 6 Parameters: ECG; HR/PR; NIBP; SPO2; TEMP; RESP |
| Features: |
| new high-precision modules, new digital oxygen technology |
| 8 inches color TFT LCD display; compact; 1.3KG |
| Real time S-T segment analysis; arrhythmia analysis; |
| 1-7 level audio/visual alarming |
| Up to 400 groups NIBP list, 60 alarm event records recall in storage. |
| Lasting working capacity with build-in rechargeable lithium battery |
| Applicable to bedside care ward, ICU/CCU/OR, emergency centers, family care and so on |
| Standard configuration (Packing include): |
| PM-9000 8 inch transport monitor ×1 set, |
| Built-in rechargeable lithium battery ×1 set, |
| Standard 5-leads ECG conductance joint connecting cables ×1 set, |
| Standard adult blood pressure cuffs ×1 set, |
| Adult SPO2 probe ×1 set, |
| TEMP probe ×1 set, |
| Power plug line ×1 set, |
| Grounding wire ×1 set, |
| English operation manual ×1 set. |
Technical parameters
| ECG |
lead mode;I,II,III,AVR,AVL,AVF,V1-6 Gain: ×0.25, × 0. 5, and × 1, × 2 Frequency: 0.5 Hz - 100 Hz Common-mode signal inhibition: More than 70 dB Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls. HR: ± 5 BPM Precision calibration signal: 1mv(peak, ± 3% accuracy) ST Detection: measurement range (-2.0mV----+2.0mV) Using Standard: meet the ANSI / AMI EC13 -2002 standard Response time: 1s Alarm: Sound and Light Preset heart rate range: (Alarm over preset numerical) Ceiling: 1-255 bpm adjustable Threshold: 0-254 bpm adjustable |
NIBP |
Technology: Oscillography Mode: manual / automatic Measurement units: mmHg / kPa Scope: Pressure Cuffs 0-250 mmHg Inflatable cuffs: 180 mmHg (120mmHg for children, 70mmHg for newborn) Inflatable cuffs follow: original SBP: + 30 mmHg Measuring range: SYS: 60-250 mmHg DIA: 40-220 mmHg MEAN: 45-235 mmHg Response time: 1s Alarm: Sound and Light Preset range: report (Numerical exceed preset alarm) SYS: maximum: 1-255 mmHg adjustable Threshold: 0-254 mmHg adjustable DIA: ceiling: 1 -255 mmHg adjustable Minimum standards: 0-254mmHg adjustable |
| SPO2 |
Range: 0-100% Accuracy: 1% Resolution: 1% Pulse frequency: 20-250 times / min Response time: 1s Alarm: Sound and Light Preset range: (report Alarm over preset numerical) Ceiling: 1% - 100% adjustable Threshold: 0% - 99% adjustable |
TEMP |
Technology: thermostat temperature probe Measuring range: 20 ° C-45 ° C Temperature resolution: 0.1% Accuracy: ± 0.1 ° C Response Time: 1s Alarm: Sound and Light Preset range: report (numerical preset alarm over) Maximum: 20.1 ° C-45.5 ° C adjustable Threshold: 20 ° C-45.4 ° C Adjustable |
| RESP |
Breathing frequency range: 0-60 bum Accuracy: ± 1rpm Response time: 1s Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches Alarm: Sound and Light Alarm range: (numerical preset alarm over) Ceiling: 10-100 bpm adjustable Threshold: 0 -99 bpm adjustable |
Printer(Optional)
|
Specification: Dual channel thermal array data recorder Print mode: Real time or event triggered record waveform and text Accuracy: horizontal: 4oodpi vertical: 800dpi Annotation: Date/ time(24 hours) Optional wall bracket, mobile stand, visits backpack. |
| System |
Screen:7/8 inches TFT screen of LCD Battery: sealed maintenance-free lithium battery Safety standard: lec601-1(GB9706.1) |
||
