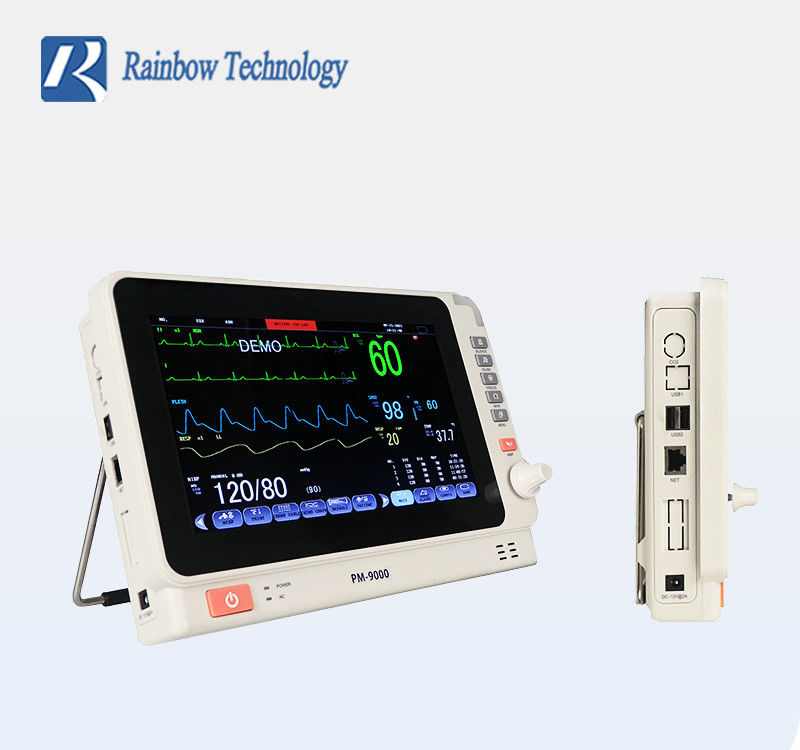

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter
10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter
10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter

Large Image :  10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter

Product Details:
Place of Origin: Hunan, China
Brand Name: RAINBOW
Certification: ISO13485, FSC
Model Number: PM-9000 10 inch
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US $228-290/unit
Packaging Details: Anti-collision film+ Carton box Carton box dimension: 35*22*28cm GW : 3.45kg
Delivery Time: Within 3 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000units/year

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter

Description
Product Name: Patient Monitor Using Standard: Meet The ANSI / AMI EC13 -2002 Standard
Size: 10 Inch Application: Hospital, Dental Clinic, Home Nursing Etc.
Lead Mode: I,II,III,AVR,AVL,AVF,V1-6 6 Parameters: ECG,PR,SPO2,NIBP,TEMP,RESP
High Light:

10 Inch Multi Parameter Ultrathin Monitors

,

SP02 6 Parameter Ultrathin Monitors

,

Rechargeable Multi Parameter Ultrathin Monitors

10 inch Multi-Parameter Equipment Rechargeable SP02 6 Parameter Ultrathin Monitors​





Features:

1. Anti-movement-interference to minimize failures and adjustable for low or high pulse measurement.

2. Modularized and one-piece design,strong anti-interference capability, more stable functions,consumes less power.

3. 10 inch graphic LCD display ,more convenient and shortcut.

4. Built-in lithium battery, AC and DC, can provide longer service after power failure.

5. Unique Battery charge detection,displayable battery level.

6. Unique real person voice alarm,sound, light and word alarm,three-level intelligent alarm

7. 2000-piece trend and data storage,200-set alarm events available for printing

8. Applying"Double Overvoltage protection" to ensure the safety, consistency and accuracy under all conditions.

9. Blood pressure with new anti-movement, low perfusion measurement technology in order to guarantee the newborn measurement accuracy.

10. Support English and Chinese.





Basic parameters:



Brand Name: Rainbow
Size: 10.1 inch Ultra Thin
Model: PM-9000
Functions: ECG, Heart rate, oxygen saturation, NIBP,TEMP,RESP
Manufacturer: Hunan Rainbow Technology, Ltd.





10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 0



10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 1

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 2

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 3

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 4

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 5

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 6

10 Inch Multi Parameter Ultrathin Monitors Rechargeable SP02 6 Parameter 7



Standard configuration:

PM-9000A multi parameter patient monitor×1 set, standard 5-leads ECG conductance joint connecting cables×1 set, standard adult blood pressure cuffs×1 set, adult SPO2 probe×1 set, TEMP probe×1 set, power plug line×1 set, grounding wire×1 set, English operation manual×1 set, three certificates×1 set.

Optional:

monitor cart / support bracket/wall hanger/mobile stand/oral stent

Children/newborn SPO2 probe,Children/newborn blood pressure cuffs



Technical parameters:

  • ECG

Lead mode;I,II,III,AVR,AVL,AVF,V1-6

Gain: ×0.25, × 0. 5, and × 1, × 2

Frequency: 0.5 Hz - 100 Hz

Common-mode signal inhibition: More than 70 dB

Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.

HR: ± 5 BPM

Precision calibration signal: 1mv(peak, ± 3% accuracy)

ST Detection: measurement range (-2.0mV----+2.0mV)

Using Standard: meet the ANSI / AMI EC13 -2002 standard

Response time: 1s

Alarm: Sound and Light

Preset heart rate range: (Alarm over preset numerical)

Ceiling: 1-255 bpm adjustable

Threshold: 0-254 bpm adjustable



  • NIBP

Technology: Oscillography

Measurement method:more accurate with reverse measurement

Measurement units:mmHg/Kpa

Overvoltage protection:double safety protection

Measure time:less than 45S

Scope: Pressure Cuffs 0-250 mmHg

Measure accuracy:ANSI/AAMI SP10-2002 standard average accuracy and deviation

Inflatable cuffs: 180 mmHg (120mmHg for children

Inflatable cuffs follow: original SBP: + 30 mmHg

Measuring range:

SBP 60 mmHg~250 mmHg

Pmean 45 mmHg~235 mmHg

DBP 40 mmHg~220 mmHg

Measure accuracy:±1.1KPa(±8mmHg)±10%

Response time: 1s

Alarm: Sound and Light

Preset range: report (Numerical exceed preset alarm)

SBP maximum 1mmHg~255 mmHg

Threshold 0 mmHg~254 mmHg

DBP maximum 1mmHg~255 mmHg

Threshold 0 mmHg~254 mmHg

Alarm accuracy:±1 mmHg

Standard: ANSI/AAMI SP10-2002



  • SPO2

Range: 0-100%

Accuracy: 1%

Resolution: 1%

Pulse frequency: 20-250 times / min

Response time: 1s

Alarm: Sound and Light

Preset range: (report Alarm over preset numerical)

Ceiling: 1% - 100% adjustable

Threshold: 0% - 99% adjustable



  • TEMP

Technology: thermostat temperature probe

Measuring range: 20 ° C-45 ° C

Temperature resolution: 0.1%

Accuracy: ± 1 ° C

Response time: 1s

Alarm: Sound and Light

Preset range: report (numerical preset alarm over)

Maximum: 20.1 ° C-45.5 ° C adjustable

Threshold: 20 ° C-45.4 ° C Adjustable

Alarm accuracy:±1℃



FAQ
1. who are we?
We are based in Hunan, China, start from 1997,sell to Domestic Market(50.00%),Southeast Asia(15.00%),Africa(10.00%),Central America(10.00%),Mid East(8.00%),South Asia(7.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Multi parameter Patient Monitor,ECG Machine,Infusion Pump,Syringe Pump,Nutritional Pump

4. why should you buy from us not from other suppliers?
Hunan Rainbow Technology Co,Ltd is a professional manufacturer and wholesaler in monitor with 19-year experience. In order to meets the marketing demand, our company cooperate with the America RMS Company to release a serials of PM-9000 parameters monitor.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
