Product Details:
|
| Place Of Origin: | China | Brand Name: | Rainbow |
|---|---|---|---|
| Model Number: | PM-9000 | Warranty: | 1 Year |
| After-sale Service: | Online Technical Support | Material: | Plastic |
| Quality Certification: | Ce | Product Name: | Vital Sign Monitor |
| Size: | 20*9*18cm | Weight: | 1.4Kg |
| Display: | 7 Inch | ||
| High Light: | 7In Multi Parameter Monitor,Ambulance ECG Patient Monitor,Firstaid ECG Patient Monitor |
||
Patient Monitor is a kind of instrument or system which is used to measure and control patients' physiological parameters, which can be compared with known settings, if they are higher than known settings, the system will alarm.
Product parameters

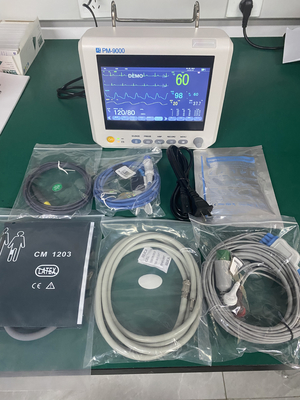

| PM-9000 7 inch main unit |
| Disposable ECG Electrodes (5pcs) |
| Reusable Spo2 sensor (1 PC) |
| ECG Cable and Leadwire (1 PC) |
| NIBP cuff and tube (1 PC) |
| Power cord(1 PC) |
| • 6 Standard parameters: ECG, 2-TEMP, NIBP, Sp02, RESP, PR/HR |

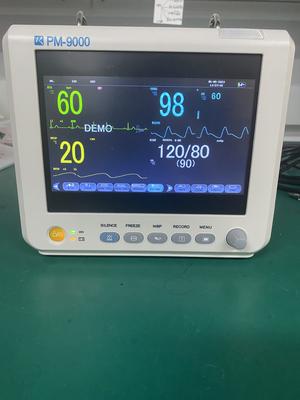

| • 7 inch high resolution color TFT LCD display |
| • Real time S-T segment analysis, pace-maker detection |
| • Indication of incorrect manipulation and malfunction analysis |
| • Patient info input management function |
| • Muti-lead ECG waveforms display in phase |
| • Large volume of tabular and praphic trends information storage and easy to recall |
| • Up to 5 hours working capacity of built-in rechargeable lithium battery |
| • Option: wall-mounted,trolley |
Scope of application
The monitor is widely used in hospital departments bedside care ward, ICU, CCU, operating theaters, emergency centers, family care and the like.
Optional: wall bracket, mobile stand, visits backpack. copy of application
The monitor is suitable for pregnant women and patients with ECG, ECG, respiration, temperature, sPo2, pulse rate, NIBP other items monitoring, and the monitoring data can be displayed , reviewed, stored and printed.
The way to use or wear the accessories
First of all difference depends on the patient's age to choose suitable oxygen probe. Oxygen probe will be connected to the Monitor (SpO2 connecting blocks), the probe will be inserted into the finger cramp (index finger, middle finger and ring finger may, not too long fingernails), a finger probe map finger in the direction finger is the most suitable location is right fingernails covered optical window. As shown picture
Before using cuff, comprising air should be totally crowded net. Wear cuff, flattening its coated surface in the upper arm, to satisfy the physical wound tolerance should be moderate, not too tightly. Otherwise it would cause discoloration or limb isocheims end.
Usually five lead ECG electrodes can be placed above the conduct shown in Figure 5-1. Leads connect the cables to adopt international standards color coding, will lead Clamps with electrodes connected to the head, Recognizing lead by the correct line coding and linking location.
Respiratory monitoring signal is mind-operative electrode conductivity acquired, therefore, there is no need to impose any further electrode, and electrodes placed considerable importance.
Some patients in the clinic will expand its lateral thoracic resulting negative thoracic pressure, in which case, the best two thoracic breathing electrode placed in the left and right middle maxillary line, as it is the region's largest breathing. Achieve the best breathing wave
