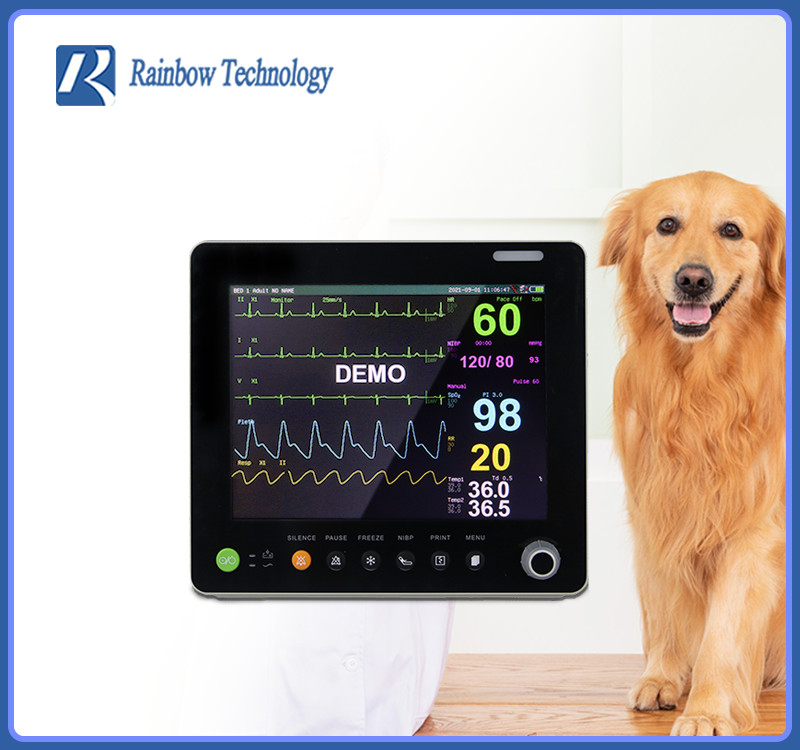

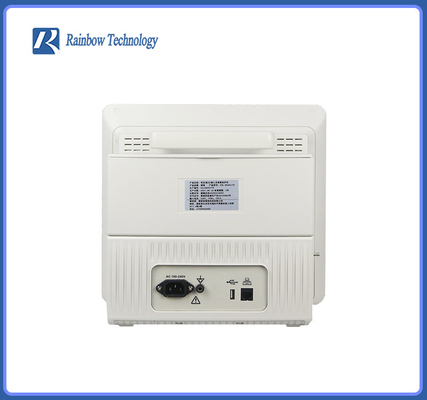

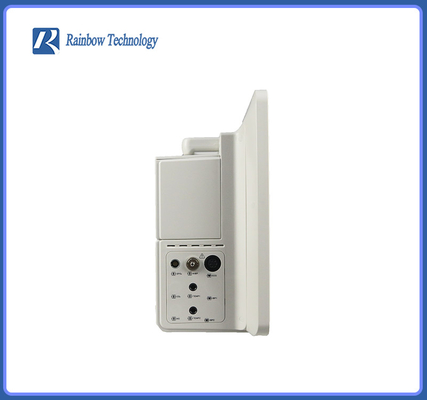

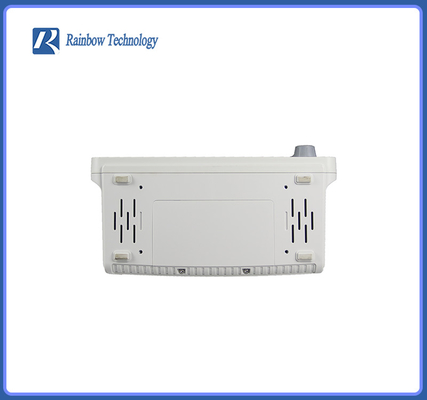

Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable

Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable
Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable

Large Image :  Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable

Product Details:
Certification: ISO13485
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US $330-420/unit
Packaging Details: Anti-collision film+ Carton box Carton box dimension: 40*30*35cm Gross weight: 5.35kg
Delivery Time: Within 3 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000units/year

Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable

Description
Place Of Origin: China Brand Name: Rainbow
Model Number: PM-9000GTA Properties: Diagnosis & Injection
Product Name: Veterinary Multiparameter Monitor Application: Veterinary Surgery
Usage: Animal Healthcare Type: Veterinary Products
Function: Veterinary Monitor 6 Vital Signs Feature: Portable
Packing: Carton Animal: Pets Horse Cattle Pig Sheep Elephant
High Light:

Anaesthesia Temp Vital Signs Monitor

,

Multiparameter Vital Signs Monitor

,

Vet Veterinary Monitoring Equipment

Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable Animal Full Parameter Veterinary Patient Monito

Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable 0Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable 1

Features

*12.1'' color TFT LCD with high-resolution displays patient parameter and waveform, and alarm, bed NO, clock, state and other information provided by the monitor synchronously.
* Monitoring contents, scan speed, volume and output contents can be set optionally.
* Storage of 720-hour trend data, and review of 2 hours holographic waveform.
* Storage and review of 200 alarm events.
* Function of NIBP review, storage for up to 1000 data.
* Adopt digital SpO2 technology, which has strong anti-interference and anti-weak filling capability.
* Calculation of drug concentration.
* Network: connecting with central station, other Bed observation and software updating. Connection mode: wireless and wired.
* Built-in rechargeable battery for uninterrupted monitoring.
* Anti-high frequency surgical unit, defibrillation-proof(requirement for special leads).
* Analysis function for heart rate variability(HRV) (optional)

Some operate details

ECG electrode placement

Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable 2





Monitoring Procedure

1.Switch on the monitor.
2.Attach the sensor to the appropriate site of the animal finger.

3.Plug the connector of the sensor extension cable into the SpO2 socket

Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable 3

Specification




ECG
Lead: 3/5
5 lead mode: I, I, I. aVR, aVL. aVF, V
3 ECG channels, 7 ECG waves in ECG full lead mode
HR:15~ 350bpm
Gain:X2.5,x5,x10,x20
Wave speed: 12.5/25/50 mm/s
Pacemaker
Arythmia analysissT analysis
Filter mode: other, monitor, surgery

RESP
Impedance between RA-LL or RA-LA
RESP lead:/I
Apnea Alarm : 10 ~ 40 s
Bandwidth: 0.3 ~ 2.5 Hz





NIBP
Method : Oscillometry
For animal from < 10kg to > 20kg
Unit : mmHg ,Kpa
Mode: Manual,Auto,STAT
Measure and Alarm Range
SYS 40~.280 mmHg
DIA 10 ~220 mmHg
MEAN 20 ~ 240 mmHg
Cuff 0 ~ 300mmHg
Static pressure: 土3mmHg
Automatic measurement interval time: 1minute ~ 480 minutes
SPO2
SpO2,PR,PI
Accuracy:土2%( 70~ 100%)
Pulse Rate: 20~ 250bpm
Standard
ECG, NIBP,SpO2,PR,TEMP,RESP
Optional
Mainstream/Sidestream EtCO2, IBP,Wall Mount,Trolly

Accessories

Animal Vet Medical Anaesthesia Temp Vital Signs Monitor Multiparameter Portable 4
