Product Details:
|
Place Of Origin: | China | Brand Name: | Rainbow |
---|---|---|---|
Model Number: | PM-9000 | Properties: | Vital Signs Monitor |
Function: | ECG,HR,SP02,NIBP,RESP,TEMP | ECG Mode: | I,II,III,AVR,AVL,AVF,V |
Warranty: | 1 Year | After-sale Service: | Online Technical Support |
Display: | 7 Inch Color LCD | Size: | 300mm×175mm×150mm |
Weight: | 2Kg(excluding Accessories And Embedded Batteries) | Mode: | Continuous Operation |
AC Power Supply: | AC180-220V,50Hz-60Hz | ||
Highlight: | 7Inch Multi Parameter Monitor,ECG Vital Signs Patient Monitor,PM-9000 Multi Parameter Monitor |
Introduction

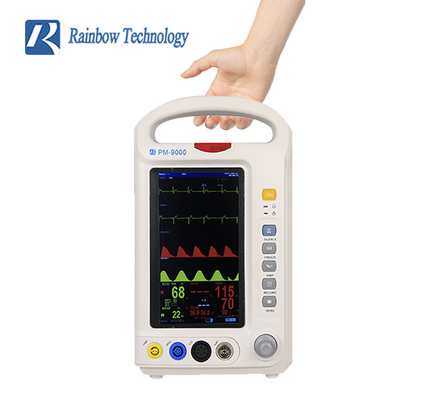

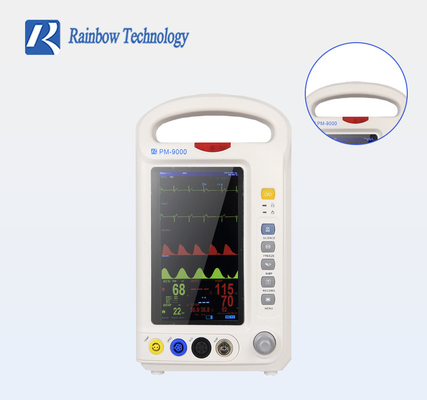

PM-9000 7 inch multi-parameter monitor can be widely used in surgery. emergency, ICU, CCU, and various clinical Guardianship. Due to the import of high brightness original True Color IFT LCD, which makes a clear visual interface components; And its small size and light weight its not just suitable for the patient's hospital bed but also for ambulances and other mobile environment for adults and children who apply.
PM-9000 7 inch Multi-parameter can continuously test the patients' ECG, heart rate, noninvasive blood pressure (systolic pressure, diastolic and mean arterial pressure), blood oxygen saturation, respiration, body temperature and other important parameters signs custody ECG waveform screen display waveform, respiration, blood pressure, oxygen waveform measurements, heart rate, respiration and blood oxygen
data frequency, temperature and other parameters, such as oxygen ECG
waveform and waveform data can be realized intervals. The trend has also shown graphic form and function to facilitate medical diagnosis.
Technical parameters
ECG measurement:
Leads choices: All, I, II, III, aVF, aVR, aVL. V1-6 chest leads showed
Gains options:
× 1, × 2, × 0.5, and × 4 four trenches
Frequency: 0.5 Hz - 100 Hz
Common-mode signal inhibition: More than 70 dB
Scan rate: 12.5 mm / S, 25 mm / S. 50 mm / S standard three stalls:
HR: + 5 bpm
Precision calibration signal: 1mv(peak, ‡ 3% accuracy)
ST Detection: measurement range (-1.0m V+1.0m V)
Using Standard: meet the ANSI /AMI EC13 -2002 standard
Response time: 1s
Alarm:
Sound and Light
Preset heart rate range: (Alarm over preset numerical)
Ceiling:
1-255 bpm adjustable
Threshold:
0-254 bpm adjustable
RESP Breath
Breathing frequency range: 0-60 bum
Accuracy:
‡ 1rpm
Response
Gains options: × 1, × 2, × 4, and × 0.5 four trenches
Alarm: Sound and Light Alarm range:
(numerical preset alarm over)
Ceiling:
10-100 bpm adjustable
Threshold:
0 -99 bpm adjustable
NIBP measurement
Technology:
Oscillometric
Mode: manual / automatic
Measurement units: mmHg / kpa
Protection: Double security protection
A measurement time: less than 45 S
Scope: Pressure Cuffs 0-250 mmHg
Blood pressure measurement accuracy: ANSI /AAMI, SP10-2002 standard error and standard deviation of the average value of the initial
Inflatable cuffs: 180 mmHg (120 mmHig children
Inflatable cuffs follow: original SBP: + 30 mmHg
Blood pressure measuring range:
Systolic blood pressure: 60-250 mmHg
Diastolic blood pressure: 40-220 mmHg newborn 70 mmHg)
Pressure on the average: 45-235 mmHg
Response time: 1s
Alarm: Sound and Light
Preset range: report (Numerical exceed preset alarm)
Systolic blood pressure maximum: 1-255 mmHg adjustable
Threshold: 0-254 mmHg adjustable
Diastolic blood pressure ceiling: 1 -255 mmH adjustable
Minimum standards: 0-254 mmHg adjustable
Use standard: compliance with the ANSI/ AAMI SP10-2002 standard
Spo2 measurement
Range: 0-100%
Accuracy: 1%
Resolution: 1%
Pulse frequency: 20-250 times / min
Response time: Is
Alarm: Sound and Light
Preset range: report (Alarm over preset numerical)
Ceiling:
1% - 100% adjustable
Threshold:
0% - 99% adjustable
TarP measurements
Technology: thermostat temperature probe
Measuring range: 20 ° C-45 ° C
Temperature resolution: 0.1%
Accuracy: = 0.1 ° C
Response Time: Is
Alarm: Sound and Light
Preset range: report (numerical preset alarm over)
Maximum: 20.1 ° C-45.5 ° C adjustable
Threshold: 20 ° C-45.4 ° C Adjustable

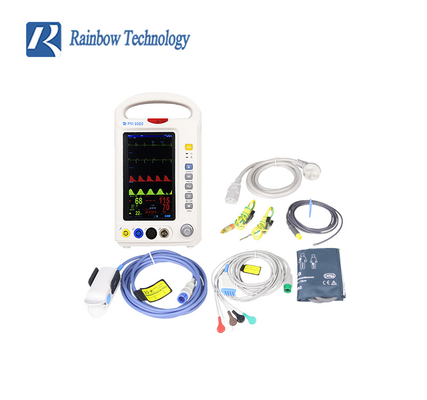

Packing list
Model | PM-9000 7 inch Color Portable Monitor |
Specifications | ECG; NIBP; SPO2; TEMP; HR, Breath. |
Standard 5-lead ECG conductance joint connecting cables | 1 set |
Standard Adult blood pressure cuffs | 1 set |
FINGER oxygen probes and extends cables | 1 set |
Temperature probe and extend cable | 1 set |
Power Plug Line | 1 set |
Grounding wires | 1 set |
English operation manual | 1 set |
