Product Details:
|
| Place Of Origin: | Hunan, China | Model Number: | PM-9000B |
|---|---|---|---|
| Brand Name: | Rainbow | Power Source: | Electric |
| Warranty: | 1 Year | After-sale Service: | Online Technical Support |
| Material: | Plastic | Quality Certification: | CE |
| Instrument Classification: | Class II | Safety Standard: | None |

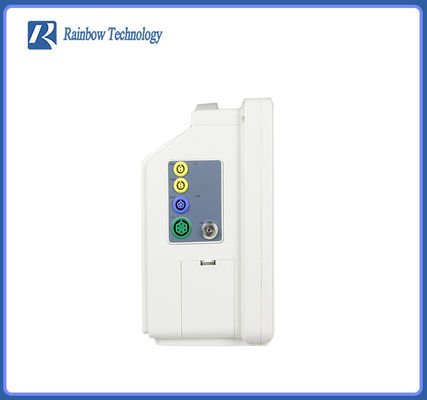

| Product Name: | Fetal Monitor | ||
| High Light: | CTG Maternal Fetal Monitor,12.1Inch Portable CTG Machine,TOCO Portable CTG Machine |
||
Introduction
►The new high-precision modules, high precision measurement parameters, reliable quality and stable performance.
►High brightness resolution 12.1 inches color TFT LCD display, waveform data is clearly visible.
►Jog shuttle operation mode, icon interface, visual image.
►A variety of display interface: a single guide, standard, large font, all leads, trend charts coexist to meet more clinical needs.
►All aluminum internal structure design has good shock resistance to use in the mobile environment.
►The new design of full isolation floating, anti defibrillation, anti electrosurgical interference, to meet the surgery, ward and other harsh environments needs.
► Powerful storage capability, the entire fully parametric trend chart data, power-down save function.
► Automatic sound and light dual alarm, the alarm can be set upper and lower limits. Fan-less design, clean, low power consumption and improve the lifespan of the instrument.
►Body is light weight and sturdy, easy to carry.
►Support for wired and wireless networking capabilities, support online software upgrades.
►Removing the optional built-in rechargeable lithium battery, AC-DC dual-use, light weight, energy-saving and environmental protection.
►Built-in two channel thermometer recorder, real-time waveform and icon print.Widely used in hospital departments bedside care ward, ICU, CCU, operating theaters, emergency centers, family care and the like.
►Optional wall bracket, mobile stand, visits backpack.
Technical Specifications
FHR
Transducer: Multi-crystals, wide wave beam, pulsed-wave working method, high sensitivity
Strength: < 1mW/cm2
Working Frequency: 1.0MHz
Signal Processing: Special DSP system and modern recognition
Measurement Range: 50~240bpm
Alarm Range:
High Limit: 160, 170, 180, 190 bpm
Low Limit: 90, 100, 110, 120 bpm
Maximum Audio Output Power: 1.5 Watt
TOCO
Measurement Range: 0-100 units
Display
LCD shows the FHR trace, TOCO tracd, FM, Doctor Event Mark, Time, Volume etc monitor state, and also it can store and playback.
Transducer Acoustic Output:
Under the requirements laid down in IEC 1157, 1992, the peak negative acoustic pressure does not exceed 1Mpa.The output beam intensity does not exceed 20mW/cm2 and the spatial-peak temporal average intensity does not exceed 100 mW/cm2. The sound intensity of this monitor will not exceed 1mW/cm2.
GEL
Viscous aqueous non-sensitizing, hypo-allergenic and non-irritating to skin. Bacteriostat (not sterile)
Standard:dual channel thermal recorder
Pringting mode:real-time or event-triggered recording waveforms text
Resolution:400dpi level
800dpi vertical
Note:date(Year/Month/Day)
Time:(24 hours)
Standard of Security
Comply with IEC601-1(UL2601) medical safety standards
Accessories
