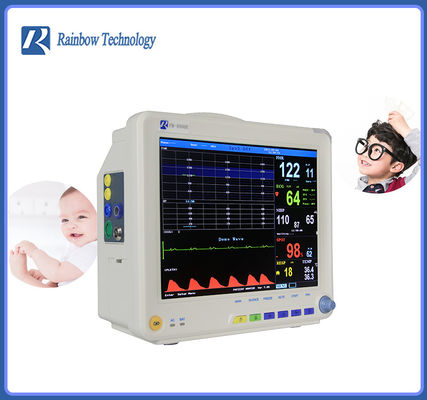

Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor

Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor
Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor

Large Image :  Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor

Product Details:
Place of Origin: Hunan-China
Brand Name: RAINBOW
Certification: ISO13485
Model Number: PM-9000E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $409.00 - $550.00
Packaging Details: Packing terms: Anti-collision film+ Carton box Carton box dimension: 40*30*35cm Gross weight: 6.30kg
Delivery Time: Within 3 days
Payment Terms: Western Union, L/C, MoneyGram, T/T
Supply Ability: 30000units/year

Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor

Description
Application: Pregnant Women, Fetus 3 Parameters: Toco, FHR, FM
SFDA Classification: Class II Packaging: Packing Terms: Anti-collision Film+ Carton Box Carton Box Dimension: 40*30*35cm Gross Weight: 5.47kg
Inventory: Yes MOQ: 1
Delivery Time: Within 3 Days
High Light:

Anti ESU Fetal Heart Monitor

,

ISO13485 Fetal Heart Monitor

,

Anti ESU Fetal And Maternal Monitor


9 Parameters Hospital Equipment Portable Fetal Heart Monitor 12.1 Inch For Fetus



Basic information:

Nine parameters FHR, TOCO, FM, ECG,HR,SPO2,NIBP,RESP, TEMP
Size 12.1 inch portable maternal fetal monitor
Weight 3.55kg(with build-in two channel thermal printer)
Voltage 220v
Power 40w
Leads 3-5 leads
Suitable places hospital departments bedside care ward, ICU, CCU, operating theaters, prenatal care unit emergency centers, family care and the like.
Optional mobile stand/wall mount
SFDA classification Class II
Working system Continuous running equipment



Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor 0















Features:
1-7 level audio/visual alarming
12" color TFT display, up to 12 waveforms
3 in 1 transducers, no cable inter twisting.
Arrhythmia analysis, ST calculation, Pace analysis
Various interfaces: A single guide, standard, large font, all leads
Anti-ESU, anti- defibrillator
Patient info input management function
Multi-lead ECG waveforms display in phase
suitable for adults, children, newborns and unborn babies.
new high-precision modules, new digital oxygen technology
suitable for adults, children, newborns and unborn babies.
Large volume of tabular and graphic trends information storage and easy to recall
Built-in recorder and batter
new high-precision modules, new digital oxygen technology



Anti ESU Fetal Heart Monitor 9 Parameters Fetal And Maternal Monitor 1

Standard configuration:

PM-9000E maternal fetal monitor×1 set,

build-in dual channel thermal printer×1 set,

triple fetal probe×1 set,

ultrasound gel×1 bottom,

probe bandages×1 set,

standard 5-leads ECG conductance joint connecting cables×1 set,

standard adult blood pressure cuffs×1 set,

adult SPO2 probe×1 set,

TEMP probe×1 set,

power plug line×1 set,

grounding wire×1 set,

English operation manual×1 set.

Three certificates×1 set.

Optional:

Build-in rechargeable lithium battery; monitor mobile stand/ cart.



Technical Parameters

FHR

Probe: Nine wafer, wide beam, pulsed operation mode and high sensitivity.

Ultrasound intensity: less than 1mW / cm²

Operating frequency: 1.0MHz

Signal Processing: dedicated digital signal processing unit

Maximum Audio Output Power: 1.5W

TOCO



10-100 pressure unit



Ultrasonic Probe Output



In accordance with the provisions of the international convention in 1992, IEC1157, negative peak sound pressure of not more than l trillion Pa (MPa). Beam sound intensity does not exceed 20 mW / cm 2 (mW / cm ²). Sound intensity spatial peak temporal average density of less than 100 mW / cm (mW / cm ²). The models sound intensity does not exceed 1mw / cm ²

Coupling Agent (GEL)



Viscous water-based sets of objects. On the skin without stimulation, no allergies. Chemically stable, inhibit bacterial type.



ECG

lead mode;I,II,III,AVR,AVL,AVF,V1-6

Gain: ×0.25, × 0. 5, and × 1, × 2

Frequency: 0.5 Hz - 100 Hz

Common-mode signal inhibition: More than 70 dB

Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.

HR: ± 5 BPM

Precision calibration signal: 1mv(peak, ± 3% accuracy)

ST Detection: measurement range (-2.0mV----+2.0mV)

Using Standard: meet the ANSI / AMI EC13 -2002 standard

Response time: 1s

Alarm: Sound and Light

Preset heart rate range: (Alarm over preset numerical)

Ceiling: 1-255 bpm adjustable

Threshold: 0-254 bpm adjustable

NIBP

Technology: Oscillography

Mode: manual / automatic

Measurement units: mmHg / kPa

Scope: Pressure Cuffs 0-250 mmHg

Inflatable cuffs: 180 mmHg (120mmHg for children, 70mmHg for newborn)

Inflatable cuffs follow: original SBP: + 30 mmHg

Measuring range: SYS: 60-250 mmHg

DIA: 40-220 mmHg

MEAN: 45-235 mmHg

Response time: 1s

Alarm: Sound and Light

Preset range: report (Numerical exceed preset alarm)

SYS: maximum: 1-255 mmHg adjustable

Threshold: 0-254 mmHg adjustable

DIA: ceiling: 1 -255 mmHg adjustable

Minimum standards: 0-254mmHg adjustable

SPO2

Range: 0-100%

Accuracy: 1%

Resolution: 1%

Pulse frequency: 20-250 times / min

Response time: 1s

Alarm: Sound and Light

Preset range: (report Alarm over preset numerical)

Ceiling: 1% - 100% adjustable

Threshold: 0% - 99% adjustable

TEMP

Technology: thermostat temperature probe

Measuring range: 20 ° C-45 ° C

Temperature resolution: 0.1%

Accuracy: ± 0.1 ° C

Response Time: 1s

Alarm: Sound and Light

Preset range: report (numerical preset alarm over)

Maximum: 20.1 ° C-45.5 ° C adjustable

Threshold: 20 ° C-45.4 ° C Adjustable

RESP

Breathing frequency range: 0-60 bum

Accuracy: ± 1rpm

Response time: 1s

Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches

Alarm: Sound and Light

Alarm range: (numerical preset alarm over)

Ceiling: 10-100 bpm adjustable

Threshold: 0 -99 bpm adjustable

Printer(Optional)



Specification: Dual channel thermal array data recorder

Print mode: Real time or event triggered record waveform and text

Accuracy: horizontal: 4oodpi vertical: 800dpi

Annotation: Date/ time(24 hours)

Optional wall bracket, mobile stand, visits backpack.

System

Screen:12.1 inches TFT screen of LCD

Battery: sealed maintenance-free lithium battery

Safety standard: lec601-1(GB9706.1)



ECG

lead mode;I,II,III,AVR,AVL,AVF,V1-6

Gain: ×0.25, × 0. 5, and × 1, × 2

Frequency: 0.5 Hz - 100 Hz

Common-mode signal inhibition: More than 70 dB

Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.

HR: ± 5 BPM

Precision calibration signal: 1mv(peak, ± 3% accuracy)

ST Detection: measurement range (-2.0mV----+2.0mV)

Using Standard: meet the ANSI / AMI EC13 -2002 standard

Response time: 1s

Alarm: Sound and Light

Preset heart rate range: (Alarm over preset numerical)

Ceiling: 1-255 bpm adjustable

Threshold: 0-254 bpm adjustable

NIBP

Technology: Oscillography

Mode: manual / automatic

Measurement units: mmHg / kPa

Scope: Pressure Cuffs 0-250 mmHg

Inflatable cuffs: 180 mmHg (120mmHg for children, 70mmHg for newborn)

Inflatable cuffs follow: original SBP: + 30 mmHg

Measuring range: SYS: 60-250 mmHg

DIA: 40-220 mmHg

MEAN: 45-235 mmHg

Response time: 1s

Alarm: Sound and Light

Preset range: report (Numerical exceed preset alarm)

SYS: maximum: 1-255 mmHg adjustable

Threshold: 0-254 mmHg adjustable

DIA: ceiling: 1 -255 mmHg adjustable

Minimum standards: 0-254mmHg adjustable

SPO2

Range: 0-100%

Accuracy: 1%

Resolution: 1%

Pulse frequency: 20-250 times / min

Response time: 1s

Alarm: Sound and Light

Preset range: (report Alarm over preset numerical)

Ceiling: 1% - 100% adjustable

Threshold: 0% - 99% adjustable

TEMP

Technology: thermostat temperature probe

Measuring range: 20 ° C-45 ° C

Temperature resolution: 0.1%

Accuracy: ± 0.1 ° C

Response Time: 1s

Alarm: Sound and Light

Preset range: report (numerical preset alarm over)

Maximum: 20.1 ° C-45.5 ° C adjustable

Threshold: 20 ° C-45.4 ° C Adjustable

RESP

Breathing frequency range: 0-60 bum

Accuracy: ± 1rpm

Response time: 1s

Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches

Alarm: Sound and Light

Alarm range: (numerical preset alarm over)

Ceiling: 10-100 bpm adjustable

Threshold: 0 -99 bpm adjustable

Printer(Optional)



Specification: Dual channel thermal array data recorder

Print mode: Real time or event triggered record waveform and text

Accuracy: horizontal: 4oodpi vertical: 800dpi

Annotation: Date/ time(24 hours)

Optional wall bracket, mobile stand, visits backpack.

System

Screen:12.1 inches TFT screen of LCD

Battery: sealed maintenance-free lithium battery

Safety standard: lec601-1(GB9706.1)
