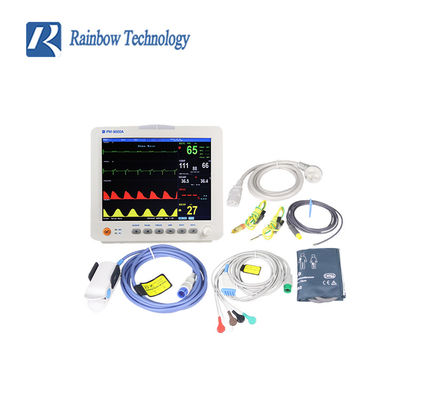

Product Details:
|
| Product Name: | Vital Signs Monitor | Optional: | Wall Mount Bracket/ Trolley |
|---|---|---|---|
| Parameters: | ECG/ RESP/SPO2/TEMP/PR/NIBP | Response Time: | 1s |
| Alarm: | Sound And Light | All Accessories: | Included |
| Highlight: | RESP Multi Parameter Patient Monitor,12.1in Display Multi Parameter Patient Monitor |
||
Lead mode;I,II,III,AVR,AVL,AVF,V1-6
Gain: ×0.25, × 0. 5, and × 1, × 2
Frequency: 0.5 Hz - 100 Hz
Common-mode signal inhibition: More than 70 dB
Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.
HR: ± 5 BPM
Precision calibration signal: 1mv(peak, ± 3% accuracy)
ST Detection: measurement range (-2.0mV----+2.0mV)
Using Standard: meet the ANSI / AMI EC13 -2002 standard
Response time: 1s
Alarm: Sound and Light
Preset heart rate range: (Alarm over preset numerical)
Ceiling: 1-255 bpm adjustable
Threshold: 0-254 bpm adjustable
Technology: Oscillography
Measurement method:more accurate with reverse measurement
Measurement units:mmHg/Kpa
Overvoltage protection:double safety protection
Measure time:less than 45S
Scope: Pressure Cuffs 0-250 mmHg
Measure accuracy:ANSI/AAMI SP10-2002 standard average accuracy and deviation
Inflatable cuffs: 180 mmHg (120mmHg for children
Inflatable cuffs follow: original SBP: + 30 mmHg
Measuring range:
SBP 60 mmHg～250 mmHg
Pmean 45 mmHg～235 mmHg
DBP 40 mmHg～220 mmHg
Measure accuracy:±1.1KPa(±8mmHg)±10%
Response time: 1s
Alarm: Sound and Light
Preset range: report (Numerical exceed preset alarm)
SBP maximum 1mmHg～255 mmHg
Threshold 0 mmHg～254 mmHg
DBP maximum 1mmHg～255 mmHg
Threshold 0 mmHg～254 mmHg
Alarm accuracy:±1 mmHg
Standard: ANSI/AAMI SP10-2002
Company Profile
Hunan Rainbow Technology Limited Corporation is the pioneer manufacturer of high technology medical equipment, meantime, it is also the leader of domestic monitor innovation. Since the foundation of 1997, company always dedicated on the research and production of clinical monitor. Products cover fetal monitor, maternal-fetal monitor, multi-parameter monitor, central monitoring network system and so on, with cost-effective price and high quality! Company stick to customer demand orientation, and pursue the goal of customer satisfaction as service principle. All the equipments have our promise of two year replacement and life time warranty. The registered capital of company is 10 million RMB. The capacity of annual production mount up to 10000 sets. The "Rainbow" brand treatment monitor of our company have been rated as Hunan famous brand. Company stick to small profit but quick return and integrity management principle. Popular products (multi-parameter monitor) occupied 50% above of domestic market share. Heading for a goal of more professional, large scale, and more international.
