Product Details:
|
| Model Number: | PM-9000 8 Inch | Product Name: | Patient Monitor |
|---|---|---|---|
| Instrument Classification: | Class II | Transport Package: | Anti-Collision Film/Carton Box |
| Option: | No | ||
| High Light: | Wall Mounted Multi Parameter Patient Monitor,Lithium Battery Multi Parameter Patient Monitor,Pathological Analysis Handheld Patient Monitor |
||

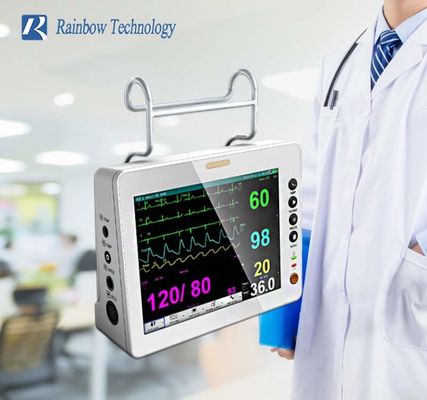

Pathological analysis equipments handheld wall mounted multi-parameter patient monitor with lithium battery
Standard configuration:
PM-9000 8 inch patient monitor×1 set,
lithium battery×1 pcs,
standard 5-leads ECG conductance joint connecting cables×1 set,
standard adult blood pressure cuffs×1 set,
adult SPO2 probe×1 set,
TEMP probe×1 set,
power plug line×1 set,
grounding wire×1 set,
English operation manual×1 set.
Three certificates×1 set.
product parameters:
ECG:
Lead mode: 5 leads(R,L,F,N,C or RA,LA,LL,RL,V)
Lead selection : I,II,III,avR,avL,avF,V
Waveform: 3ch
Lead mode: 3 Leads(R,L,F or RA,LA,LL)
Lead selection: I,II,III
Waveform: 1ch
Gain selection:
x2.5mm/mV,x5.0mm/mV,x10mm/mV,x20mm/mV,auto,deviation<±5%
Sweep speed: 6.25mm/s;12.5mm/s;25mm/s;50mm/s
Heart rate range: Adult: 15~300bpm; Neonate/pediatric:15~350bpm
Accuracy: +1bpm or +1%,whichecer is greater
Resolution: 1bpm
Sensitivity: >200(uV p-p)
ECG signal: 0.2~8mV
Different input impedance >5MΩ
Bandwidth: Surgery 1~15Hz, Monitor 0.5~35Hz, Diagnostic 0.05~100Hz
Common mode rejection ratio(CMRR)
CMRR: monitor >105dB, Operation >105dB, Diagnose >85dB
Electrode offset potential ±300mV
Pace pulse detection conditions:
Amplitude: 1 mV~10 mV, width 0.5ms~2ms, rise time: 10us~ 100us
Baseline recovery time < 3 S after Defi.
SPO2
Measurement range: 0~100%
Resolution: 1%
Accuracy: +2%(70-100%);0-69% unspecified
Alarm range 0~100%
Pulse Rate:
range: 20~300bpm
Resolution: 1bpm
Error: +3bpm
NIBP
Method: oscillometric
Operation mode : Manual/Automatic/STAT
Auto measurement time: Adjustable(1~480min)
Measurement Unit: mmHg/Kpa selectable
Measurement types: Systolic, Diastolic, Mean
Measurement range:
Range of Systolic pressure:
Adult: 40~270mmHg
Pediatric: 40~220mmHg
Neonate: 25~140mmHg
Range of mean pressure:
Adult: 20~235mmHg
Pediatric: 20~165mmHg
Neonate: 20~125mmHg
Range of diastolic pressure:
Adult: 10~215mmHg
Pediatric: 10~150mmHg
Neonate :10~115mmHg
RESPIRATION
Method: RA-LL,RA-LA
Measure inpedance range: 0.3~3.0Ω
Baseline impedance range: 200-4000Ω
Measurement range: Adult:0~120Brpm; Neonate/Pediatric:0~150Brpm
Apnea alarm: YES,10~40s
Resolution: 1rpm
Accuracy: +2rpm
TEMPERATURE
Compatible probe: YSI or CYF
Measurement range: 5~50℃
Resolution : 0.1℃
Accuracy: +0.1℃
Refreshing time: about 1
Average measuring time: <10s
Hunan Rainbow Technology Limited Corporation is the pioneer manufacturer of high technology medical equipment, meantime, it is also the leader of domestic monitor innovation. Since the foundation of 1997, company always dedicated on the research and production of clinical monitor. Products cover fetal monitor, maternal-fetal monitor, multi-parameter monitor, central monitoring network system and so on, with cost-effective price and high quality! Company stick to customer demand orientation, and pursue the goal of customer satisfaction as service principle. All the equipments have our promise of two year replacement and life time warranty. The registered capital of company is 10 million RMB. The capacity of annual production mount up to 10000 sets. The "Rainbow" brand treatment monitor of our company have been rated as Hunan famous brand. Company stick to small profit but quick return and integrity management principle. Popular products (multi-parameter monitor) occupied 50% above of domestic market share. Heading for a goal of more professional, large scale, and more international.
