Product Details:
|

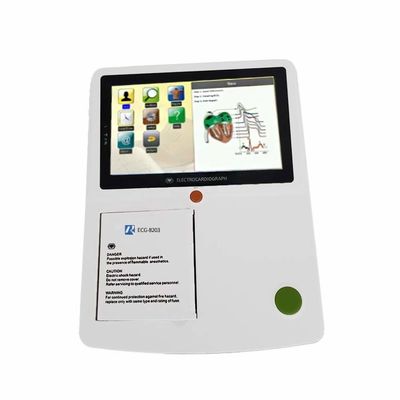

| Product Name: | Veterinary ECG Machine | Power Source: | Electricity/ Built-in Battery |
|---|---|---|---|
| Type: | Pathological Analysis Equipments | Print Paper Size: | 80mm*20m |
| Place: | Pet Clinic Or Hospital | Animal: | Animal Examination |
| Language: | Multiple Languages Choice | ||
| High Light: | 3 Channels Vet ECG Machine,12 Leads Vet ECG Machine |
||
Features:
1. Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor’s burden and improve working efficiency.
2. Lead off & lack off paper detection function.
3. Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
4. Connect with PC via ECG workstation software.
5. Sleep mode to save energy and extend display life.
6. 80mm*20m thermal printer for 3 channel ECG machine. It is high resolution thermo sensitive printer and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.
Parameters of ECG Machine
| CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mV± 3% |
| Input circuit | Floating | Voltage tolerance | ± 500mV |
| Input circuit current | ≤ 0.1µ A | Time constant | > 3.2s |
| Resolution | 12bit/1000Hz | Frequent response | 0.05Hz~150Hz |
| Operation mode | Manual/Auto | Noise level | ≤ 15µ Vp-p |
| Filter | AC. EMG Filter | Threshold | ≤ 20µ V |
| Drift filter | Anti-Drift System | Paper speed | 12.5, 25, 50mm/s (± 3%) |
| Input Impedance | > 50MΩ | Sensitivity | 5,10,20mm/mV |
| Patient current leakage | < 10µ A | Recorder | High resolution thermal printer |
| Specification of fuse | T1.6A 250V Ø5×20 | Battery | Built-in rechargeable Li-ion battery 11.1V(2200mAh) |
| Recording paper | Thermal recording paper | Package | 256mm*204mm*66mm |
