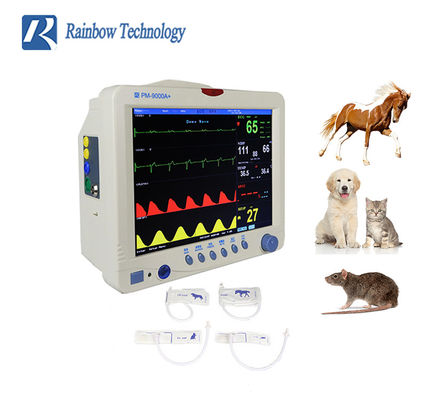

Wall Mounted Multi Parameter Veterinary Monitor 12.1 Inch For Animal Hospital

Light Weight Optional Mobile Cart /Wall Mounted 12.1 Inch PM-9000A+ Veterinary Monitor For Animal Hospital Use

Basic parameters:



Features:



Standard configuration:PM-9000A multi parameter patient monitor×1 set, standard 5-leads ECG conductance joint connecting cables×1 set, standard adult blood pressure cuffs×1 set, adult SPO2 probe×1 set, TEMP probe×1 set, power plug line×1 set, grounding wire×1 set, English operation manual×1 set, three certificates×1 set.
Optional::three-channel thermal printer, monitor cart / support bracket/rack
Children/newborn SPO2 probe,Children/newborn blood pressure cuffs

Technical parameters:

• ECG

Lead mode;I,II,III,AVR,AVL,AVF,V1-6

Gain: ×0.25, × 0. 5, and × 1, × 2

Frequency: 0.5 Hz - 100 Hz

Common-mode signal inhibition: More than 70 dB

Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.

HR: ± 5 BPM

Precision calibration signal: 1mv(peak, ± 3% accuracy)

ST Detection: measurement range (-2.0mV----+2.0mV)

Using Standard: meet the ANSI / AMI EC13 -2002 standard

Response time: 1s
Alarm: Sound and Light
Preset heart rate range: (Alarm over preset numerical)
Ceiling: 1-255 bpm adjustable
Threshold: 0-254 bpm adjustable


• NIBP

Technology: Oscillography

Measurement method:more accurate with reverse measurement

Measurement units:mmHg/Kpa

Overvoltage protection:double safety protection

Measure time:less than 45S

Scope: Pressure Cuffs 0-250 mmHg

Measure accuracy:ANSI/AAMI SP10-2002 standard average accuracy and deviation

Inflatable cuffs: 180 mmHg (120mmHg for children

Inflatable cuffs follow: original SBP: + 30 mmHg

Measuring range:

SBP 60 mmHg～250 mmHg

Pmean 45 mmHg～235 mmHg

DBP 40 mmHg～220 mmHg

Measure accuracy:±1.1KPa(±8mmHg)±10%

Response time: 1s
Alarm: Sound and Light

Preset range: report (Numerical exceed preset alarm)

SBP maximum 1mmHg～255 mmHg

Threshold 0 mmHg～254 mmHg

DBP maximum 1mmHg～255 mmHg

Threshold 0 mmHg～254 mmHg

Alarm accuracy:±1 mmHg

Standard: ANSI/AAMI SP10-2002

• SPO2

Range: 0-100%

Accuracy: 1%

Resolution: 1%

Pulse frequency: 20-250 times / min

Response time: 1s

Alarm: Sound and Light

Preset range: (report Alarm over preset numerical)

Ceiling: 1% - 100% adjustable

Threshold: 0% - 99% adjustable

• TEMP

Technology: thermostat temperature probe

Measuring range: 20 ° C-45 ° C

Temperature resolution: 0.1%

Accuracy: ± 1 ° C

Response time: 1s
Alarm: Sound and Light
Preset range: report (numerical preset alarm over)
Maximum: 20.1 ° C-45.5 ° C adjustable
Threshold: 20 ° C-45.4 ° C Adjustable
Alarm accuracy:±1℃


• RESP

Breathing frequency range: 0-60 bum
Accuracy: ± 1rpm
Response time: 1s
Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches
Alarm: Sound and Light

Ceiling: 10-100 bpm adjustable

Threshold: 0 -99 bpm adjustable

Alarm accuracy:±1rpm


• Printer(Optional)

Specification:three-channel thermal recorder


• System

Screen:12.1 inches TFT screen of LCD
Battery: sealed maintenance-free lithium battery
Safety standard: lec601-1(GB9706.1)
