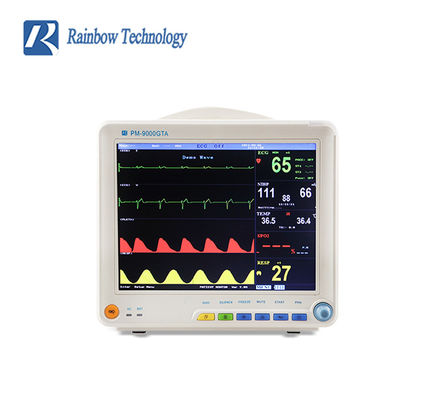

Large Image :  Multi Parameter Patient Monitor Hospital Emergency Medical Equipment

Product Details:
Place of Origin: Hunan,China
Brand Name: RAINBOW
Certification: ISO13485,FSC
Model Number: PM-9000GTA
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: USD 252-315
Packaging Details: carton box
Delivery Time: Within 3-5 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000UNITS/YEAR

Multi Parameter Patient Monitor Hospital Emergency Medical Equipment

Description
SIZE: 12.1 Inch BRAND NAME: RAINBOW
MOQ: 1
High Light:

NIBP Multi Parameter Patient Monitor

,

Hospital Emergency Multiparameter Patient Monitor

China Factory Hospital Emergency Medical Supplies Equipment Cheap Price Multi Parameter Monitor Patient



Basic information:

6 parameters ECG,HR/PR,SPO2,NIBP,RESP, TEMP
Size 12.1 inch portable ICU monitor
Weight 3.1kg(with lithium battery)
Voltage 220v
Power 40w
Leads 3-5 leads
Suitable places Bedside care ward, ICU, CCU, operating theaters, emergency centers, family care and the like.
Optional ETCO2 module; Build-in thermal printer; lithium battery; mobile stand/ wall mount
SFDA classification Class II
Working system Continuous running equipment



Multi Parameter Patient Monitor Hospital Emergency Medical Equipment 0

Multi Parameter Patient Monitor Hospital Emergency Medical Equipment 1

Features:
12" color TFT display, up to 12 waveforms
Arrhythmia analysis, ST calculation, Pace analysisnew
high-precision modules, new digital oxygen technology
Patient info input management function
Various interfaces: A single guide, standard, large font, all leads
Anti-ESU, anti- defibrillator
Multi-lead ECG waveforms display in phase
1-7 level audio/visual alarming
Large volume of tabular and graphic trends information storage and easy to recall
Suitable for adult, pediatric and neonatal patient
Built-in recorder and battery



Standard configuration:
PM-9000GTA patient multi parameter monitor×1 set,
Rechargeable lithium battery×1 pcs,
standard 5-leads ECG conductance joint connecting cables×1 set,
standard adult blood pressure cuffs×1 set,
adult SPO2 probe×1 set,
TEMP probe×1 set,
power plug line×1 set,
grounding wire×1 set,
English operation manual×1 set.
Three certificates×1 set.

Optional:

EtCO2 module; Build-in rechargeable lithium battery; build-in thermal printer; monitor mobile stand/ wall mount

Multi Parameter Patient Monitor Hospital Emergency Medical Equipment 2

Technical parameters

ECG

lead mode;I,II,III,AVR,AVL,AVF,V1-6

Gain: ×0.25, × 0. 5, and × 1, × 2

Frequency: 0.5 Hz - 100 Hz

Common-mode signal inhibition: More than 70 dB

Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.

HR: ± 5 BPM

Precision calibration signal: 1mv(peak, ± 3% accuracy)

ST Detection: measurement range (-2.0mV----+2.0mV)

Using Standard: meet the ANSI / AMI EC13 -2002 standard

Response time: 1s

Alarm: Sound and Light

Preset heart rate range: (Alarm over preset numerical)

Ceiling: 1-255 bpm adjustable

Threshold: 0-254 bpm adjustable

NIBP

Technology: Oscillography

Mode: manual / automatic

Measurement units: mmHg / kPa

Scope: Pressure Cuffs 0-250 mmHg

Inflatable cuffs: 180 mmHg (120mmHg for children, 70mmHg for newborn)

Inflatable cuffs follow: original SBP: + 30 mmHg

Measuring range: SYS: 60-250 mmHg

DIA: 40-220 mmHg

MEAN: 45-235 mmHg

Response time: 1s

Alarm: Sound and Light

Preset range: report (Numerical exceed preset alarm)

SYS: maximum: 1-255 mmHg adjustable

Threshold: 0-254 mmHg adjustable

DIA: ceiling: 1 -255 mmHg adjustable

Minimum standards: 0-254mmHg adjustable

SPO2

Range: 0-100%

Accuracy: 1%

Resolution: 1%

Pulse frequency: 20-250 times / min

Response time: 1s

Alarm: Sound and Light

Preset range: (report Alarm over preset numerical)

Ceiling: 1% - 100% adjustable

Threshold: 0% - 99% adjustable

TEMP

Technology: thermostat temperature probe

Measuring range: 20 ° C-45 ° C

Temperature resolution: 0.1%

Accuracy: ± 0.1 ° C

Response Time: 1s

Alarm: Sound and Light

Preset range: report (numerical preset alarm over)

Maximum: 20.1 ° C-45.5 ° C adjustable

Threshold: 20 ° C-45.4 ° C Adjustable

RESP

Breathing frequency range: 0-60 bum

Accuracy: ± 1rpm

Response time: 1s

Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches

Alarm: Sound and Light

Alarm range: (numerical preset alarm over)

Ceiling: 10-100 bpm adjustable

Threshold: 0 -99 bpm adjustable

Printer(Optional)



Specification: Dual channel thermal array data recorder

Print mode: Real time or event triggered record waveform and text

Accuracy: horizontal: 4oodpi vertical: 800dpi

Annotation: Date/ time(24 hours)

Optional wall bracket, mobile stand, visits backpack.

System

Screen:12.1 inches TFT screen of LCD

Battery: sealed maintenance-free lithium battery

Safety standard: lec601-1(GB9706.1)
