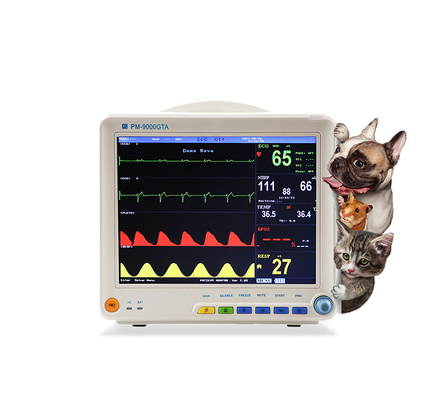

220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment

220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment
220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment 220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment 220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment 220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment 220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment 220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment

Large Image :  220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment

Product Details:
Place of Origin: Hunan,China
Brand Name: RAINBOW
Certification: ISO13485,FSC
Model Number: PM-9000GTA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 230-315
Packaging Details: carton box
Delivery Time: Within 3 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000units/year

220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment

Description
Size: 12.1 Inch Weight: 3.05kg
Brand Name: RAINBOW Product Name: Veterinary Monitor
MOQ: 1 OEM: Yes
Highlight:

Multi Parameter Veterinary Monitor

,

40W Multi Parameter Veterinary Monitor

,

ECG Vet Monitoring Equipment

China Hot Sale Light Weight Better Price Animal Hospital Veterinary Monitor Multi Parameter

Basic information:

6 parameters ECG,HR/PR,SPO2,NIBP,RESP, TEMP
Size 12.1 inch portable ICU monitor
Weight 3.1kg(with lithium battery)
Voltage 220v
Power 40w
Leads 3-5 leads
Suitable places Bedside care ward, ICU, CCU, operating theaters, emergency centers, family care and the like.
Optional ETCO2 module; Build-in thermal printer; lithium battery; mobile stand/ wall mount
SFDA classification Class II
Working system Continuous running equipment



220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment 0

Features:
12" color TFT display, up to 12 waveforms
Arrhythmia analysis, ST calculation, Pace analysisnew
high-precision modules, new digital oxygen technology
Patient info input management function
Various interfaces: A single guide, standard, large font, all leads
Anti-ESU, anti- defibrillator
Multi-lead ECG waveforms display in phase
1-7 level audio/visual alarming
Large volume of tabular and graphic trends information storage and easy to recall
Suitable for adult, pediatric and neonatal patient
Built-in recorder and battery



220V 40W Multi Parameter Veterinary Monitor ECG Vet Monitoring Equipment 1

Standard configuration:
PM-9000GTA patient multi parameter monitor×1 set,
Rechargeable lithium battery×1 pcs,
standard 5-leads ECG conductance joint connecting cables×1 set,
standard adult blood pressure cuffs×1 set,
adult SPO2 probe×1 set,
TEMP probe×1 set,
power plug line×1 set,
grounding wire×1 set,
English operation manual×1 set.
Three certificates×1 set.

Optional:

EtCO2 module; Build-in rechargeable lithium battery; build-in thermal printer; monitor mobile stand/ wall mount



Technical parameters

ECG

lead mode;I,II,III,AVR,AVL,AVF,V1-6

Gain: ×0.25, × 0. 5, and × 1, × 2

Frequency: 0.5 Hz - 100 Hz

Common-mode signal inhibition: More than 70 dB

Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.

HR: ± 5 BPM

Precision calibration signal: 1mv(peak, ± 3% accuracy)

ST Detection: measurement range (-2.0mV----+2.0mV)

Using Standard: meet the ANSI / AMI EC13 -2002 standard

Response time: 1s

Alarm: Sound and Light

Preset heart rate range: (Alarm over preset numerical)

Ceiling: 1-255 bpm adjustable

Threshold: 0-254 bpm adjustable

NIBP

Technology: Oscillography

Mode: manual / automatic

Measurement units: mmHg / kPa

Scope: Pressure Cuffs 0-250 mmHg

Inflatable cuffs: 180 mmHg (120mmHg for children, 70mmHg for newborn)

Inflatable cuffs follow: original SBP: + 30 mmHg

Measuring range: SYS: 60-250 mmHg

DIA: 40-220 mmHg

MEAN: 45-235 mmHg

Response time: 1s

Alarm: Sound and Light

Preset range: report (Numerical exceed preset alarm)

SYS: maximum: 1-255 mmHg adjustable

Threshold: 0-254 mmHg adjustable

DIA: ceiling: 1 -255 mmHg adjustable

Minimum standards: 0-254mmHg adjustable

SPO2

Range: 0-100%

Accuracy: 1%

Resolution: 1%

Pulse frequency: 20-250 times / min

Response time: 1s

Alarm: Sound and Light

Preset range: (report Alarm over preset numerical)

Ceiling: 1% - 100% adjustable

Threshold: 0% - 99% adjustable

TEMP

Technology: thermostat temperature probe

Measuring range: 20 ° C-45 ° C

Temperature resolution: 0.1%

Accuracy: ± 0.1 ° C

Response Time: 1s

Alarm: Sound and Light

Preset range: report (numerical preset alarm over)

Maximum: 20.1 ° C-45.5 ° C adjustable

Threshold: 20 ° C-45.4 ° C Adjustable

RESP

Breathing frequency range: 0-60 bum

Accuracy: ± 1rpm

Response time: 1s

Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches

Alarm: Sound and Light

Alarm range: (numerical preset alarm over)

Ceiling: 10-100 bpm adjustable

Threshold: 0 -99 bpm adjustable

Printer(Optional)



Specification: Dual channel thermal array data recorder

Print mode: Real time or event triggered record waveform and text

Accuracy: horizontal: 4oodpi vertical: 800dpi

Annotation: Date/ time(24 hours)

Optional wall bracket, mobile stand, visits backpack.

System

Screen:12.1 inches TFT screen of LCD

Battery: sealed maintenance-free lithium battery

Safety standard: lec601-1(GB9706.1)
