Product Details:
|
Size: | 7inch | Weight: | 1.5kg |
---|---|---|---|
Application: | ICU/CCU, Ward, Operation Theatre | ||
Highlight: | 7inch Multi Parameter Patient Monitor,Portable Ward Multi Parameter Patient Monitor |
Features:
1.With a new high -precision modules, new digital oxygen technology, measurement is more comprehensive and accurate. |
2.High brightness resolution 7 inches color TFT LCD display, compact design, weighing only 1.5kg. |
3. ST segment automatic detection, arrhythmia analysis, drug concentrations drop table analysis. |
4.Throughout the whole parameter trend chart data, ECG waveform storage playback, power-down save function. |
5.Jog shuttle operation, in English logo button, easy to use, simple and intuitive operation. |
6.A single guide, standard, large font, all leads, trend charts coexist to meet more clinical needs. |
7. Optional built-in rechargeable lithium battery, AC-DC dual-use, light weight, energy-saving and environmental protection. |
8. Widely used in hospital departments bedside care ward, ICU, CCU, operating theaters, emergency centers, family care and the like. |
9. Optional wall bracket, mobile stand, visits backpack. |
11.Powerful monitoring function. |
Standard configuration:

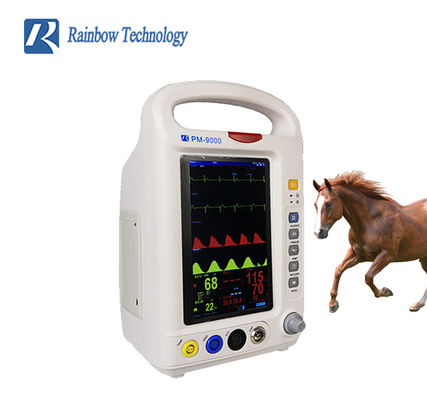

PM-9000 7 inch transport monitor×1 set,
built-in rechargeable lithium battery×1 set,
build-in thermal printer×1 set ,
standard 5-leads ECG conductance joint connecting cables×1 set,
standard adult blood pressure cuffs×1 set,
adult SPO2 probe×1 set,
TEMP probe×1 set,
power plug line×1 set,
grounding wire×1 set,
English operation manual×1 set.
three certificates×1 set.
Optional: rechargeable lithium battery; build-in thermal printer; monitor mobile stand/ cart.
Technical parameters
ECG measurement:
Leads choices: All, I, II, III, aVF, aVR, aVL. V1--6 chest leads showed
Gains options: × 1, × 2, × 0. 5, and ×4 four trenches
Frequency: 0.5 Hz - 100 Hz
Common-mode signal inhibition: More than 70 dB
Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.
HR: ± 5 bpm
Precision calibration signal: 1mv(peak, ± 3% accuracy)
ST Detection: measurement range (-1.0mV----+1.0mV)
Using Standard: meet the ANSI / AMI EC13 -2002 standard
Response time: 1s
Alarm: Sound and Light
Preset heart rate range: (Alarm over preset numerical)
Ceiling: 1-255 bpm adjustable
Threshold: 0-254 bpm adjustable
NIBP measurement
Technology: Oscillography
Mode: manual / automatic
Measurement units: mmHg / kPa
Protection: Double security protection
A measurement time: less than 45 S
Scope: Pressure Cuffs 0-250 mmHg
Blood pressure measurement accuracy: ANSI /AAMI, SP10-2002 standard error and standard deviation of the average value of the initial
Inflatable cuffs: 180 mmHg (120mmHg for children, 70mmHg for newborn)
Inflatable cuffs follow: original SBP: + 30 mmHg
Blood pressure measuring range:
Systolic blood pressure: 60-250 mmHg
Diastolic blood pressure: 40-220 mmHg
Pressure on the average: 45-235 mmHg
Response time: 1s
Alarm: Sound and Light
Preset range: report (Numerical exceed preset alarm)
Systolic blood pressure maximum: 1-255 mmHg adjustable
Threshold: 0-254 mmHg adjustable
Diastolic blood pressure ceiling: 1 -255 mmHg adjustable
Minimum standards: 0-254 mmHg adjustable
Use standard: compliance with the ANSI / AAMI SP10-2002 standard
Spo2 measurement
Range: 0-100%
Accuracy: 1%
Resolution: 1%
Pulse frequency: 20-250 times / min
Response time: 1s
Alarm: Sound and Light
Preset range: (report Alarm over preset numerical)
Ceiling: 1% - 100% adjustable
Threshold: 0% - 99% adjustable
TEMP measurement:
Technology: thermostat temperature probe
Measuring range: 20 ° C-45 ° C
Temperature resolution: 0.1%
Accuracy: ± 0.1 ° C
Response Time: 1s
Alarm: Sound and Light
Preset range: report (numerical preset alarm over)
Maximum: 20.1 ° C-45.5 ° C adjustable
Threshold: 20 ° C-45.4 ° C Adjustable
RESP Breath
Breathing frequency range: 0-60 bum
Accuracy: ± 1rpm
Response time: 1s
Gains options: × 1, × 2, × 4, and × 0.5 four trenches
Alarm: Sound and Light
Alarm range: (numerical preset alarm over)
Ceiling: 10-100 bpm adjustable
Threshold: 0 -99 bpm adjustable
Printer(Optional)
Specification: Dual channel thermal array data recorder
Print mode: Real time or event triggered record waveform and text
Accuracy: horizontal: 4oodpi vertical: 800dpi
Annotation: Date/ time(24 hours)
Optional wall bracket, mobile stand, visits backpack.
System
Screen:7/8 inches TFT screen of LCD
Battery: sealed maintenance-free lithium battery
Safety standard: lec601-1(GB9706.1)
