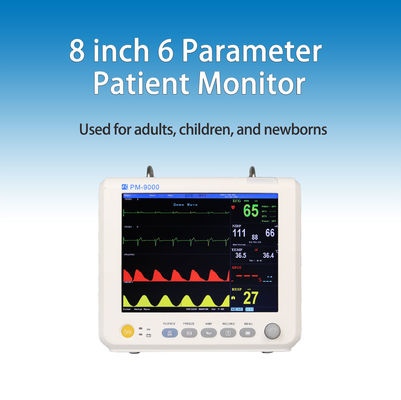

ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display

Certification
China Hunan Province Rainbow Technology Co., Ltd. certification
China Hunan Province Rainbow Technology Co., Ltd. certification
I'm Online Chat Now

ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display

ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display
ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display

Large Image :  ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display

Product Details:
Place of Origin: Hunan, China
Brand Name: RAINBOW
Certification: ISO13485, FSC
Model Number: PM-9000 8 inch
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packing Packing terms: Anti-collision film+ Carton box Carton box dimension: 35*22*29cm Gross weight: 3kg Shipping: Air shipping or Express courier is recommended if the order quantity was less than 20 units. It usually takes around 7 days to reach t
Delivery Time: Within 3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30000units/year

ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display

Description
6 Parameters: ECG; HR/PR; NIBP; SPO2; TEMP; RESP Various Interfaces: A Single Guide, Standard, Large Font, All Leads
Size: 8 Inches Color TFT LCD Display Weight: 1.3kg
Inventory: 1 Application Range: Applicable To Bedside Care Ward, ICU/CCU/OR, Emergency Centers, Family Care And So On
High Light:

ICU Vital Signs Patient Monitor

,

Vital Signs Patient Monitor 8 Inches

,

TFT LCD ICU Vital Signs Monitor

vital signs patient monitor at clinics, hospitals and outpatient treatments.



6 Parameters: ECG; HR/PR; NIBP; SPO2; TEMP; RESP



Features:

new high-precision modules, new digital oxygen technology

8 inches color TFT LCD display; compact; 1.3KG

Real time S-T segment analysis; arrhythmia analysis;

1-7 level audio/visual alarming

Patient info input management function

Efficient resistance to interference of defibrillator and HF knife

Various interfaces: A single guide, standard, large font, all leads

Up to 400 groups NIBP list, 60 alarm event records recall in storage.

Lasting working capacity with build-in rechargeable lithium battery

Applicable to bedside care ward, ICU/CCU/OR, emergency centers, family care and so on



Standard configuration (Packing include):

PM-9000 8 inch transport monitor ×1 set,

Built-in rechargeable lithium battery ×1 set,

Standard 5-leads ECG conductance joint connecting cables ×1 set,

Standard adult blood pressure cuffs ×1 set,

Adult SPO2 probe ×1 set,

TEMP probe ×1 set,

Power plug line ×1 set,

Grounding wire ×1 set,

English operation manual ×1 set.



Technical parameters

ECG

lead mode;I,II,III,AVR,AVL,AVF,V1-6

Gain: ×0.25, × 0. 5, and × 1, × 2

Frequency: 0.5 Hz - 100 Hz

Common-mode signal inhibition: More than 70 dB

Scan rate: 12.5 mm / S, 25 mm / S, 50 mm / S standard three stalls.

HR: ± 5 BPM

Precision calibration signal: 1mv(peak, ± 3% accuracy)

ST Detection: measurement range (-2.0mV----+2.0mV)

Using Standard: meet the ANSI / AMI EC13 -2002 standard

Response time: 1s

Alarm: Sound and Light

Preset heart rate range: (Alarm over preset numerical)

Ceiling: 1-255 bpm adjustable

Threshold: 0-254 bpm adjustable

NIBP

Technology: Oscillography

Mode: manual / automatic

Measurement units: mmHg / kPa

Scope: Pressure Cuffs 0-250 mmHg

Inflatable cuffs: 180 mmHg (120mmHg for children, 70mmHg for newborn)

Inflatable cuffs follow: original SBP: + 30 mmHg

Measuring range: SYS: 60-250 mmHg

DIA: 40-220 mmHg

MEAN: 45-235 mmHg

Response time: 1s

Alarm: Sound and Light

Preset range: report (Numerical exceed preset alarm)

SYS: maximum: 1-255 mmHg adjustable

Threshold: 0-254 mmHg adjustable

DIA: ceiling: 1 -255 mmHg adjustable

Minimum standards: 0-254mmHg adjustable

SPO2

Range: 0-100%

Accuracy: 1%

Resolution: 1%

Pulse frequency: 20-250 times / min

Response time: 1s

Alarm: Sound and Light

Preset range: (report Alarm over preset numerical)

Ceiling: 1% - 100% adjustable

Threshold: 0% - 99% adjustable

TEMP

Technology: thermostat temperature probe

Measuring range: 20 ° C-45 ° C

Temperature resolution: 0.1%

Accuracy: ± 0.1 ° C

Response Time: 1s

Alarm: Sound and Light

Preset range: report (numerical preset alarm over)

Maximum: 20.1 ° C-45.5 ° C adjustable

Threshold: 20 ° C-45.4 ° C Adjustable

RESP

Breathing frequency range: 0-60 bum

Accuracy: ± 1rpm

Response time: 1s

Gains options: × 1, × 2, × 0.5, and × 0.25 four trenches

Alarm: Sound and Light

Alarm range: (numerical preset alarm over)

Ceiling: 10-100 bpm adjustable

Threshold: 0 -99 bpm adjustable

Printer(Optional)



Specification: Dual channel thermal array data recorder

Print mode: Real time or event triggered record waveform and text

Accuracy: horizontal: 4oodpi vertical: 800dpi

Annotation: Date/ time(24 hours)

Optional wall bracket, mobile stand, visits backpack.

System

Screen:7/8 inches TFT screen of LCD

Battery: sealed maintenance-free lithium battery

Safety standard: lec601-1(GB9706.1)



ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display 0

ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display 1

ICU CCU OR Vital Signs Patient Monitor 8 Inches Color TFT LCD Display 2

What is your MOQ?

1 unit

What is your lead time?

Within 3 days after receiving the payment

What is the payment terms?

TT(Bank Transfer), Paypal, Western Union, Moneygram, XTransfer.

What is the warranty period?

2 years warranty period

Lifetime online technical support

Do you offer OEM service?

Yes, we do
