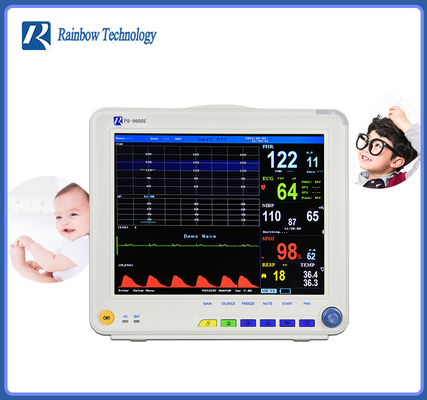

Portable TOCO Maternal Fetal Heart CTG Fetal Monitor Machine For Single Or Twins

Features

1.Module with a new high-precision, high-precision measurement parametres, reliable quality and stable performance.
2.High brightness 12.1’’ and high resolution color TFT LCD.
3.Multiple display interface: a single guide, standard, large font, all leads, trend charts coexist.
4.Powerful storage capability, the entire fully parametric trend chart data, power-down save function. Fan-less design; Light  weight and sturdy, easy to carry.Low power consumption and improve the lifespan of the instrument.

5.Removing the optional built-in rechargeable lithium battery, AC-DC dual-use, lightweight, energy-saving and  environmental protection.
6.Equipped with built-in two-channel thermal array recorder, real-time waveforms and print icon.

Technical Parameters

Fetal heart rate
Probe: Nine wafer, wide beam, pulsed operation mode and high sensitivity.
Ultrasound intensity: less than 1m W / cm2
Operating frequency: 1.0MHz
Signal Processing: dedicated digital signal processing unit
Maximum Audio Output Power: 1.5W
Contractions pressure
10-100 pressure unit
Ultrasonic probe output
In accordance with the provisions of the international convention in 1992, IEC1157, negative peak sound pressure of not more than I trillion Pa (MPa). Beam sound intensity does not exceed 20 m W / cm 2 (mW / cm 2). Sound intensity spatial peak temporal average density of less than 100 m W / cm (mW / cm 2). The models sound intensity does not exceed Imw / cm 2
Coupling agent (GEL)
Viscous water-based sets of objects. On the skin without stimulation, no allergies. Chemically stable, inhibit bacterial type.
ECG
Lead Select: All leads, I, II, III, a VF, a VR, aVL.
V1-6 chest leads display
Gain Select: xl, X 2, x4. x0.5 fourth gear
Frequency: 0.5Hz-100Hz
Common mode signal rejection: greater than 70dB
Scanning speed: 12.5m m / s, 25 m m / s 50mm / s standard three files.
Heart Rate Accuracy: ‡ 5 beats / min
Calibration signal: 1m V (peak value, accuracy ‡ 3%)
ST segment detection: Measuring range (20mV -... +
20m V)
Use Standard: ANSI/ AAMI EC 13-2002 standard
Response time: 1s
Alarm: sound and light alarm
Heart rate alarm range (preset value exceeds the preset alarm) :
Upper limit. Adjustable between 1-250 times / min
The lower limit. Adjustable between 0-249 times / min
SPO2 oxygen saturation
Range: 0-100% .
Official pay Accuracy: 1%
Resolution: 1%
Pulse rate: 20-250 beats / min
Response time: 1s
Alarm: sound and light alarm
Heart rate alarm range preset value exceeds the preset alarm):
Upper Limit: adjustable between 1% -100%
Lower limit: adjustable between 0% -99%

RESP respiration
Respiratory frequency range: 0-60 times / min
Accuracy: ‡ 1bpm
Response time: 1s
Gain selection: xl, X 2, ×4, x0.5 fourth gear
Alarm: sound and light alarm

Alarm preset range (above the preset alarm value)
Upper Limit: adjustable between a 10-100beats/ mIn
Lower Limit: adjustable between
NIBP blood pressure
Technology: Oscillometric
Measuring method: positive and negative two-way measurement data is more accurate
Operating modes: manual/ automatic
Units of measurement: mmg / Kpa
Overvoltage protection: double protection
Measurement time: less than 45s
Cuff pressure range: 0-250mm Hg
Blood pressure measurement accuracy: ANS / AAMI
SP10-2002 standard error of the mean and standard deviation values
Initial inflatable cuff: 180mmHg (newborn children
120mmHg 70mmHg)
Follow inflatable cuff: original + 30mmg systolic
blood pressure measurement range: Systolic: 60-250mmHg
DBP: 40-220mmHg
Average pressure: 45-235mmHq
Response time: s
Alarm: sound and light alarm
:(Alarm preset range exceeds the preset alarm value)
Systolic blood pressure limit is adjustable between 1-255mmHg
Adjustable between a lower 0-254mmHq
Diastolic blood pressure limit is adjustable between 1-255mmHg
Adjustable between a lower 0-254mmHq
Use Standard: ANSI/ AAMISP10-2002 standard
TEMP
Technical: highly sensitive thermistor probe
Temperature measurement range: 20 °C -45 °C
Resolution: 0.1%
Temperature accuracy: ‡ 1 °C
Response time: 1s
Alarm: sound and light alarm
Alarm preset range (above the preset alarm value)
Limit: adjustable between 20.1 C -45 5 °C.
Limit: adjustable between 20 C-45.4 C
Printer
Specifications: Dual-channel thermal array recorder
Print mode: real-time or event-triggered recording waveforms text
Resolution: 400dpi level
Chui Yi: 800dpi
Note: Date (Year / Month / Day)
Time (24 hours)
Optional wall bracket, mobile stand, visits backpack.
System
Display selection: 12.1 inch color
TFT true color LCD screen
Battery: Sealed maintenance-free lithium battery maintenance-free
Security labels: lec601-1 (International GB9706.1)
