|Type:||Enteral Feeding Pump||Weight:||1.7kg|

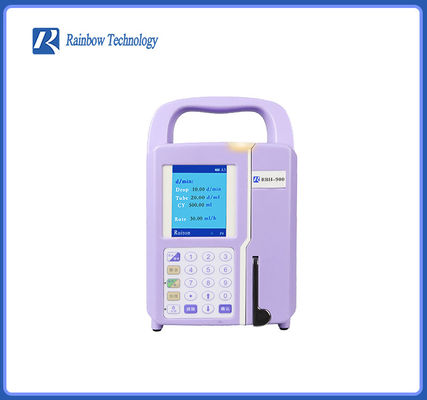

Lightweight Enteral Feeding Pump,
Multipurpose Enteral Feeding Pump
Reliable and Safe:
1, Additional set of bubble alarm design(double bubble alarm) ensure more secure infusion;
2, Advanced safety design able to stop infusion and alarm even if the CPU damage,the medical staff can ues it safely;
Continuous feeding mode, Intermittent feeding mode.
Reduce the treatment costs:
Using common IV-set, No specific nutrient tube is required.
3.There are four feeding modes: flow rate type, drip rate type, time type, intermittent feeding type, etc. the flow rate unit is automatically converted to avoid the error of manual conversion.
4.It has the function of historical operation record, which automatically records the parameters and stop reasons of each conveying operation, which is convenient for users to query and provide basis for reducing doctor-patient disputes.
|Pumping way||Semi-squeeze finger-type peristaltic pump|
|IV-sets||Special or quality PVC/TPE infusion sets with an external diameter of 3.4mm~4.5mm|
|Feeding modes||4 Feeding modes:
1, Flow-rate: ml/h;
2, Time-amount: ml/h;
3, Drop-rate: d/min;
4, Intermittent feeding mode.
|Parameter range||1, Flow-rate: 1.0~1200.0 ml/h, 0.1ml/h step;
2, Time: 1s~99h59m59s, 1s step;
3, Drop-rate: 1~333 d/min, 1 d/min step.
|Precision||Better than ±5% (using a calibrated or a special IV-set)|
|Alarm||1, Air in tube, 5 grades of sensitivity;
2, Bubble sensor fault;
3.1, Upper-end occlusion, -20~ -60 kPa,8 grades of sensitivity;
3.2, Upper-end base-pressure fault;
4.1, Lower-end occlusion, 20~ 140 kPa,8 grades of sensitivity;
4.2, Lower-end base-pressure fault;
5.1, Pump rotation fault;
6, Abnormal door-opening;
7, Low battery power, battery fault;
8, Overtime pause;
9, Completed infusion;
10, AC power fault;
11, MCU fault, and stop infusion;
12, Battery temperature is too high.
|Data function||1, Memory of calibration: Records the calibration data of tube automatically for application;
2, Memory of parameter: Records the latest feeding parameter for next operation;
3, Historical records: records latest 1000 feeding events.
|Safety classification||Class I; Internal power supply, CF type, IPX4 equipment|
|Power supply||AC 100~240V, 50/60Hz, Built-in rechargeable Li-battery|
|Working time of battery: 7h@25ml/h|
|Weight and size||130mm(w)*206mm(h)*118mm(t); about 1.6kg|
|Optional accessories||1, Warmer;
2, Wireless communicating module.
